FIGURE SUMMARY
Title

Precise in vivo functional analysis of DNA variants with base editing using ACEofBASEs target prediction

Authors
Cornean, A., Gierten, J., Welz, B., Mateo, J.L., Thumberger, T., Wittbrodt, J.
Source
Full text @ Elife
Figure 1

ACEofBASEs (a careful evaluation of base edits) enables simple and tailored use of base editors.

(a) User interface of the ACEofBASEs base editing design tool with base editor choice dropdown menu and a compendium of model species to select from. (b) Results page of the ACEofBASEs design tool for cytosine base editing of the Oryzias latipes oca2 locus. Using an in-frame sequence of the target site will directly provide the translation frame F1. Alternatively, frames can be selected from the dropdown menu. All sgRNA target sites found in the query are shown with potential amino acid change (magenta box) or nonsense mutation (PTCs, black box); here: standard editing window: nucleotides 4–8 on the protospacer; PAM: positions 21–23. For off-target prediction, a comprehensive list of potential off-target sites that contain an A or C in the respective base editing window is provided per sgRNA target. Potential off-target sites are sorted according to a position-weighted likelihood to introduce an off-target, that is the closer a mismatch at the potential off-target site to the PAM, the more unlikely this site is falsely edited (Stemmer et al., 2015).

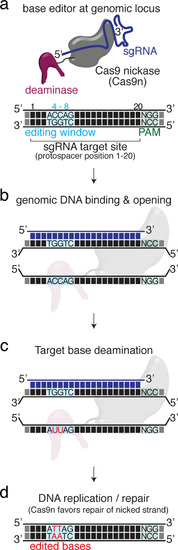

Figure 1—figure supplement 1.

Basic mechanism of cytosine base editing exemplifying the base editing principle.

(a) The cytosine base editor (CBE) complex will be guided to the genomic locus of interest by the selected sgRNA. While the protospacer adjacent motif (PAM) is essential for target recognition the editing window on the protospacer is, however, more volatile depending on the editor used and resides between positions 4 and 8 for standard CBEs and ABEs. (b–d) Mechanism of CBE-DNA binding, DNA opening and hydrolytic deamination. Following cellular DNA repair or replication processes target cytosines are converted to thymines. Note that within the hypothetical editing window any cytosine may be deaminated.
Figure 1—figure supplement 2.

sgRNA score explanation and example.

(a) Exemplified by three potential sgRNAs, the scoring system penalizes cytosines or adenines to be edited (1) outside the editing window and (2) where the dinucleotide context is unfavorable. See Materials and methods section for details. Note that only the best scoring cytosine or adenine is considered for the ranking. Here, both #2 and #3 score equally well. #2 or #3: favorable TC (C4 or C7) context within optimal editing window; #1: unfavorable AC and CC within optimal editing window. (b) Shows sgRNA ranking exemplified by using the cytosine base editor BE4-Gam and the input sequence as in Figure 1a. (b’) Note the different order of sgRNAs compared to Figure 1b. (b’’) The TC context in the optimal editing window (green arrow) strongly favors T1, whereas the CC context in the observed editing window (magenta arrow) predicts reduced efficiencies for T26.
Figure 1—figure supplement 3.

Details on selected sgRNA in ACEofBASEs.

Overview of sgRNA oca2-Q333 with target sequence, potential codon changes, and oligonucleotides required for cloning into the DR274 in vitro transcription vector for use with cytosine (a) and adenine base editors (b). All sgRNAs designed and tested were cloned with 5' substitution. A list of genomic targets is shown below, including a list of potential DNA off-target sequences (OTs) provided with sequence coordinates, mismatches (shown in red), gene name, and gene ID.

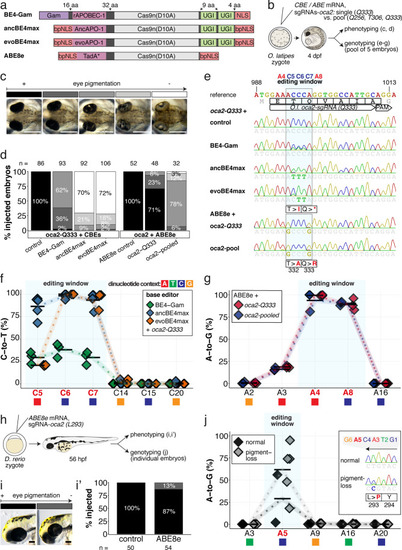

Figure 2

Somatic cytosine and adenine base editing at the oculocutaneous albinism II (oca2) locus in medaka and zebrafish allows direct functional assessment.

(a) Schematic diagram of the cytosine base editors BE4-Gam, ancBE4max and evoBE4max (evoAPOBEC1-BE4max) and the adenine base editor ABE8e. Cas9n-D10A nickase (light grey) with N-terminally linked cytidine or deoxyadenosine deaminase (pink) and C-terminal SV40 or bipartite (bp) nuclear localization sequence (NLS, red). All except BE4-Gam also contain the bpNLS N-terminally. CBEs contain variations of the rat APOBEC-1 cytidine deaminase, whereas ABE8e contains the TadA* domain (tRNA adenine deaminase), CBEs further contain C-terminally linked Uracil glycosylase inhibitors (UGI, green). Gam protein from bacteriophage Mu (purple) and linkers of varying lengths (dark grey). (b) Scheme of the experimental workflow. Cytosine or adenine base editor (CBE/ABE) mRNA and oca2-Q333 or a pool of three oca2-sgRNAs (–Q256, –T306, –Q333) were injected into the cell of a medaka zygote. Control injections only contained oca2-Q333 or ABE8e mRNA. (c) Phenotypic inspection of eye pigmentation was performed at 4 dpf (dorsal view). (d) Grouped and quantified pigmentation phenotypes shown for BE4-Gam, ancBE4max, evoBE4max, and ABE8e experiments. Control only contains oca2-Q333 sgRNA. n shown excludes embryos that are otherwise abnormal or dead, with abnormality rate given in supplement 1c. (e) Exemplary Sanger sequencing reads for each experimental condition, obtained from a pool of five randomly selected embryos at the oca2-Q333 locus. (f–g) Quantification of Sanger sequencing reads (by EditR, Kluesner et al., 2018) for BE4-Gam (n = 3), ancBE4max (n = 5) and evoBE4max (n = 3) (f), and ABE8e for single (n = 3) and pooled oca2-sgRNA experiments (n = 3) (g). Pools of five embryos per data point summarizes editing efficiencies. Mean data points are summarized in Supplementary files 1 and 2. To highlight the dinucleotide context, the nucleotide preceding the target C or A is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C or A. (h) Microinjections into the yolk of one-cell stage zebrafish were performed with ABE8e mRNA and oca2-L293 sgRNA. Zebrafish larvae were phenotypically analyzed at 56 hpf and individual larvae were subsequently genotyped. (i-i’) Larvae were scored as without (‘normal’, black) or with loss of eye pigment (grey). (j) Sanger sequencing on individually scored larvae was analyzed by EditR and plotted according to phenotype. Scale bars = 400 µm (c) or 100 µm (i). dpf / hpf = days/hours post fertilization.

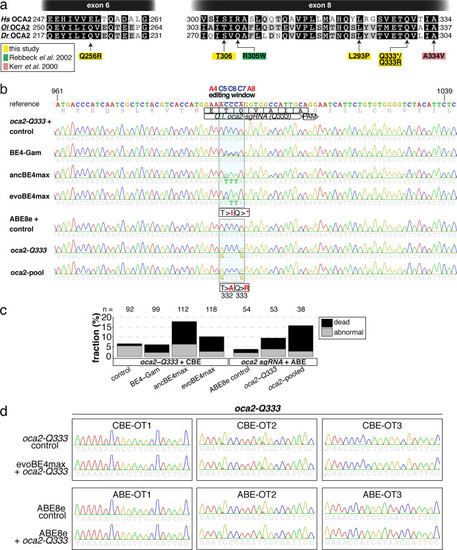

Figure 2—figure supplement 1.

Somatic cytosine and adenine base editing at the medaka <italic toggle='yes'>oculocutaneous albinism II (oca2</italic>) gene occurs in the absence of detectable indels and DNA off-target editing.

(a) Translation of sections of exon 6 and 8 of human (Hs), medaka (Ol) and zebrafish (Dr) OCA2 shows high degree of conservation. Amino acids edited or targeted in this study are highlighted in yellow. Missense mutations R305W (green) and A334V (pink) highlight albinism-associated human OCA2 mutations (Kerr et al., 2000; Rebbeck, 2002). (b) Broader window of the Sanger sequencing result displayed in Figure 2e, indicates lack of indels or unwanted editing (Kluesner et al., 2018). (c) Microinjection of oca2 sgRNAs with respective editors at the 1 cell stage causes low levels of aberrant phenotypes in medaka. Abnormal embryos either showed developmental delay or sublethal phenotype, at rates of 6.5%, 6.1%, 17.9%, 10.1%, 3.7%, 9.4%, and 15.8% (left to right), respectively n indicates total number of injected embryos, respectively. (d) The top three DNA off-targets (OTs) as predicted by ACEofBASEs for evoBE4max and ABE8e were evaluated for off-target base editing.
Figure 2—figure supplement 2.

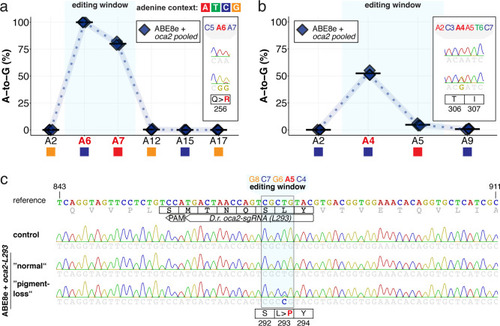

ABE8e efficiently introduces A-to-G mediated missense mutations in medaka and zebrafish.

(a–b) EditR quantification of Sanger sequencing reads for pooled oca2 ABE8e experiments (Q256, T306, Q333) from pools of five medaka embryos per data point, summarizes editing efficiencies for Q256 (a) and T306 (b) loci. For mean values see Supplementary file 2. To highlight the dinucleotide context, the nucleotide preceding the target A is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective A. (c) Wider window of exemplary Sanger sequencing reads for individual, base edited embryos, from each experimental condition following ABE8e experiments at the zebrafish oca2-L293 locus.
Figure 3

Amplicon-seq of cytosine base editors (a, c) and ABE8e (b, d) reveals prominent on-target editing efficiencies with low- to moderate levels of indels.

Genomic DNA samples from oca2-Q333 base editing experiments (Figure 2b–g) were used to query the outcome of intended base editing and indel formation by quantitative means by Illumina sequencing of the target region. Note: for oca2-Q333 control, BE4-Gam, ancBE4max, and evoBE4max, two pools of five embryos were used as sample input (a, c), whereas all three biological replicates of ABE8e samples were sequenced separately (b, d). The proportion of all reads aligned per sample to a reference is plotted, distinguishing (1) all modified reads, (2) target cytosine (C7, a) or adenine (A8, b) nucleotide changes and (3) INDELs. The number of reads shown (a, b) refers to all aligned Illumina reads per sample. The frequencies of base calls at the oca2-Q333 sgRNA target site ± 5 bp is shown for the three different cytosine editors (c) and ABE8e (d).

Figure 3—figure supplement 1.

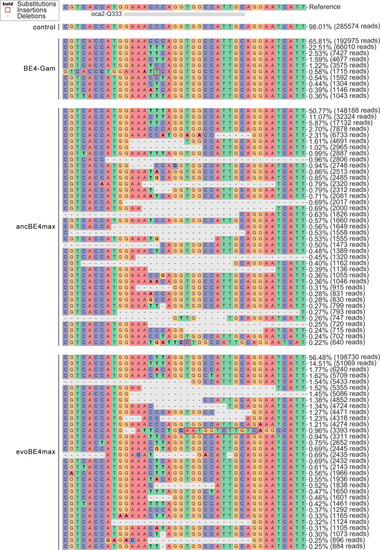

Allele frequency of CBE experiments at the oca2-Q333 locus.

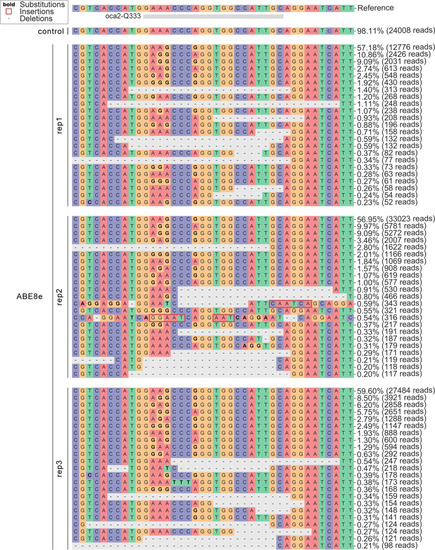

Figure 3—figure supplement 2.

Allele frequency of ABE8e experiments at the oca2-Q333 locus.

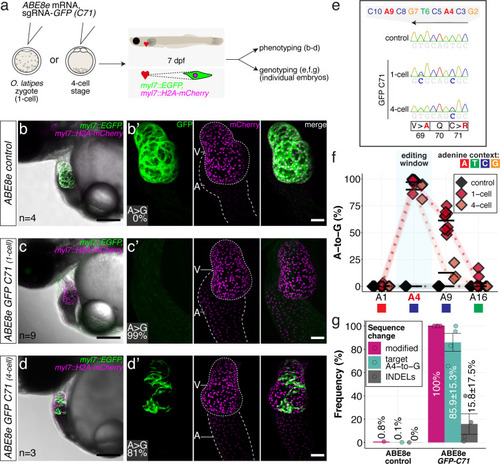

Figure 4

ABE8e efficiently introduces missense mutation and completely abolishes GFP fluorescence in F0.

(a) Co-injection of ABE8e mRNA with GFP-C71 sgRNA into a single cell of one-cell or four-cell stage medaka embryos (myl7::EGFP, myl7::H2A-mCherry). Control injections with ABE8e mRNA. Scoring of fluorescence was performed at 7 dpf followed by genotyping of each individual embryo. Confocal microscopy of chemically arrested hearts (representative images) at 7 dpf (lateral view with V = ventricle, A = atrium). Overview images, overlaid with transmitted light, show maximum z-projections of optical slices acquired with a z-step size of 5 µm. Scale bar = 200 µm (b–d). Close-up images show maximum z-projections of optical slices acquired with a z-step size of 1 µm. Note the display of A-to-G conversion rates for A4 causing the p.C71R missense mutation (see g) and Supplementary file 2. Scale bar = 50 µm (b-d’). (e–f) Quantification of Sanger sequencing reads show close to homozygosity rates of A-to-G transversions installing the C71R missense mutation (Supplementary file 2). Note: sgRNA GFP-C71 targets the complementary strand (arrow in f). To highlight the dinucleotide context, the nucleotide preceding the target A is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective A. dpf = days post fertilization. (g) Amplicon-seq of the target region a subset (n = 4) of 1 cell stage ABE8e experiment gDNA samples (single embryos) was used to quantify the outcome of intended base editing and indel formation. Aligned Illumina-reads analyzed, 14,653 (control); 23,201 (ABE8e rep1); 10,696 (ABE8e rep2); 66,311 (ABE8e rep3); 48,126 (ABE8e rep4).

Figure 4—figure supplement 1.

Sequence composition following Amplicon-seq of ABE8e GFP-C71 editants surrounding the GFP-C71 sgRNA target site ±5 bp.

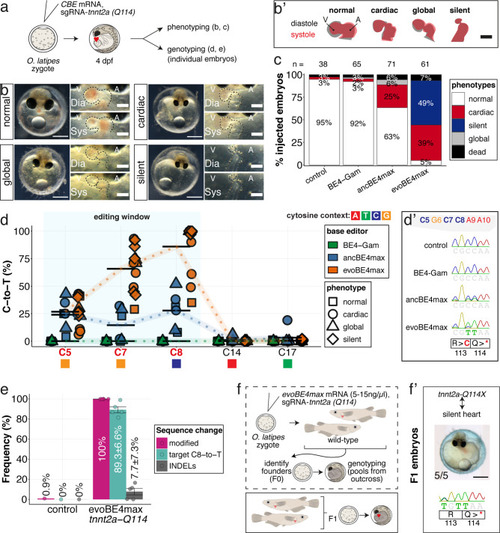

Figure 5

Stop-gain mutation in medaka troponin T gene by cytosine base editing accurately recreates mutant phenotypes in F0.

(a) Schematic diagram of protocol after co-injection of cytosine editor mRNA (comparing BE4-Gam, ancBE4max, evoBE4max) with sgRNA tnnt2a-Q114 (PTC) into one-cell stage medaka embryos; control injections only contained the sgRNA. (b) Editing of tnnt2a resulted in a range of phenotypes classified into five categories, including general morphogenic (global), dysmorphic but still functional heart chambers (cardiac), and non-contractile hearts (silent), where cardiac and silent phenotype groups displayed homogeneously additional developmental retardation. Scale bar = 400 µm (overview) and 100 µm (zoom-in). Ventricle (V), atrium (A), diastole (Dia) and systole (Sys) are indicated. (b') Representative scheme of fractional shortening of the heart chambers in specified phenotype groups highlighting significant morphological consequences (small ventricle) in the silent heart group. (c) Fraction of phenotype scores as a consequence of cytosine base editor injections. (d) Summary of editor type-specific C-to-T conversion efficiencies relative to the target C protospacer position grouped by phenotype class for BE4-Gam (n = 6), ancBE4max (n = 6) and evoBE4max (n = 12). To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C), and yellow (G) squares below the respective C. (d') Example Sanger sequencing reads of single edited embryos with resulting missense and stop-gain mutations through editing at C5, C7, and C8, respectively (e) Amplicon-seq of the target region of a subset (n = 5) of evoBE4max edited gDNA samples (single embryos) quantified target C8-to-T editing as well as indel frequencies. Aligned Illumina-reads analyzed, 7094 (control); 11,557 (evoBE4max rep1); 2561 (evoBE4max rep2); 2481 (evoBE4max rep3); 37,751 (evoBE4max rep4); 48,791 (evoBE4max rep5). (f) Phenotypic analysis of F1 tnnt2a-Q114X mutants revealed complete penetrance (n = 5) of the silent heart phenotype with same phenotypic profile as for F0 edits. dpf = days post fertilization.

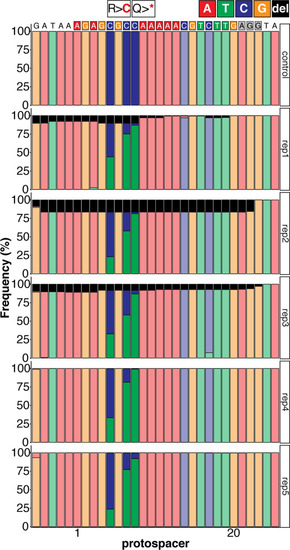

Figure 5—figure supplement 1.

Sequence composition determined by Amplicon-seq of evoBE4max tnnt2a-Q114 editants surrounding the tnnt2a-Q114 sgRNA target site ± 5 bp.
Figure 5—figure supplement 2.

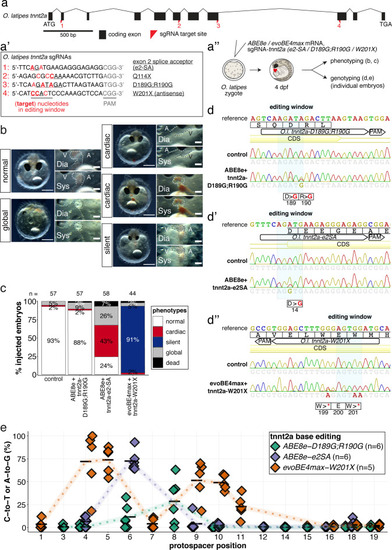

The installation of an additional PTC at tnnt2-W201X with evoBE4max leads to a recapitulation of the silent heart phenotype.

(a) O. latipes tnnt2a coding region with annotation of all sgRNAs (a’) targeting tnnt2a used in this study. (b) Overview of phenotypic categories and the quantification of phenotypic outcomes following base editing F0 tnnt2a base editing experiments (c). (d) Representative Sanger sequencing reads. (e) Summary of C-to-T or A-to-G conversion efficiencies.

Figure 5—figure supplement 3.

Cytosine base editing enables efficient installation of PTCs or missense mutations in two additional cardiac genes.

Summary of C-to-T conversion efficiencies. Sample number used for evoBE4max: n = 5, 6, 6, respectively for (b–d); and BE4-Gam: n = 2 (b). To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C.

Figure 6

In vivo modeling of human LQTS-associated mutations using adenine base editing of the medaka ERG channel gene kcnh6a.

(a) Regime of ABE8e mRNA injections with a single (kcnh6a-R512) or pooled sgRNAs (kcnh6a-T507, -R512, -D521) targeting different amino acid codons in the voltage sensor S4 domain/S4-S5 linker of the medaka potassium channel ERG in myl7::EGFP (Cab strain) transgenic embryos; control injection included ABE8e mRNA only. (b) Phenotypes in F0 comprised primary cardiac malformation (dysmorphic ventricle with impaired contractility) and more severe global phenotypes with general retarded development and prominently dysmorphic hearts the proportions of which are given in (c). Scale bar = 400 µm. (d-d'') Genotyping summaries of the three sgRNA loci with phenotype class annotations for each genotyped specimen with a comparison of single sgRNA-R512 injection to a pool with two additional sgRNAs (T507 and D521) targeting the medaka ERG S4 voltage sensor; inlets display Sanger reads with the editing of A8 (d), A6 and A8 (d') and A5 (d'') contained in the core editing windows; sgRNA pool (n = 8) and sgRNA-R512 (n = 6). To highlight the dinucleotide context, the nucleotide preceding the target A is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective A. (e–g) Confocal microscopy of the heart in a myl7::EGFP reporter line injected with ABE8e mRNA and sgRNA-R512 at 7 dpf reveals significant chamber wall defects of non-contractile/spastic ventricles with A-to-G editing of 100% in 3/4 of the specimen as determined by Sanger sequencing (e). (f) Amplicon-seq of the same gDNA samples (single embryos, n = 4) quantified target A8-to-G editing and indel frequencies. Aligned Illumina-reads analyzed, 11,387 (control); 24,936 (ABE8e rep1); 4038 (ABE8e rep2); 75,148 (ABE8e rep3); 86,327 (ABE8e rep4). Images show maximum z-projections of optical slices acquired with a z-step size of 1 µm (g). Note the display of A-to-G conversion rates. Scale bar = 50 µm. V = ventricle, A = atrium, dpf = days post fertilization.

Figure 6—figure supplement 1.

Robustness of interrogating gene function by introducing stop-gain mutations in medaka demonstrated at the N-terminal <italic toggle='yes'>kcnh6a-Q11</italic> locus in F0 through CBEs.

(a) Cartoon of ERG structure according to Wang and MacKinnon, 2017, highlighting the S4-6 domains. (b) Summary of mutations in the S4 domain in model systems studying ERG function in human (Hs ERG), medaka (Ol ERG) and zebrafish (Dr ERG) (Hassel et al., 2008; Nakajima et al., 1999; Ng et al., 2012; Sanguinetti and Xu, 1999; Zhang et al., 2011). (c) Workflow. Control injections only contained the sgRNA. (d) Phenotypes observed following editing of kcnh6a were grouped by being either isolated ‘cardiac’ phenotypes or with a ‘saturated’ outcome of ventricular asystole concomitant with additional unspecific developmental defects (‘global’). (e) Fraction of phenotype scores as a function of base editor generation. (f) Summary of editor type-specific C-to-T conversion efficiencies relative to the target C protospacer position for BE4-Gam (n = 5), ancBE4max (n = 4) and evoBE4max (n = 7). To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C. (f') Example Sanger sequencing reads of single edited embryos with resulting missense and stop-gain mutations through editing at C3, C5, C7, and C8, respectively.

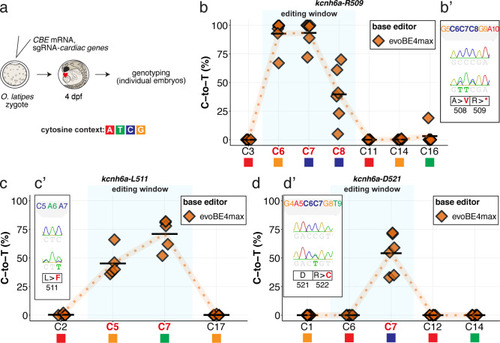

Figure 6—figure supplement 2.

evoBE4max cytosine base editing enables efficient installation of PTCs or missense mutations at three additional <italic toggle='yes'>kcnh6a</italic> loci.

Summary of C-to-T conversion efficiencies relative to the target C protospacer position for Sample number: n = 6, 4, 6 respectively (b–d). To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C.
Figure 6—figure supplement 3.

Analysis of BE4-Gam mediated PTC installation in <italic toggle='yes'>kcnh6a</italic> in F1.

(a) Injected embryos (BE4-Gam mRNA, pooled sgRNAs kcnh6a-Q11 and -R509) were raised to adulthood. Identified founders were crossed and F1 embryos further examined. (b–c) Analysis of F1 embryos at 6 dpf (b) and 4.5 dpf (c) from two independent founder couples.
Figure 6—figure supplement 4.

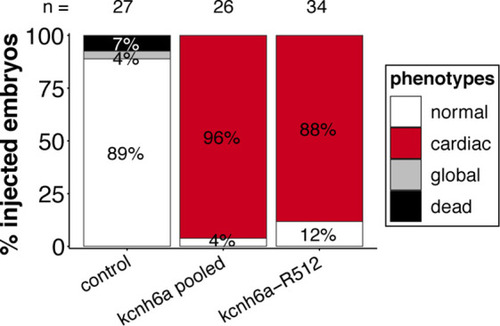

Targeting the three kcnh6a loci simultaneously or kcnh6a-R512 alone in a different genetic background (myl7::EGFP, myl7::H2A-mCherry; HdrR strain) recapitulates phenotypic proportions.

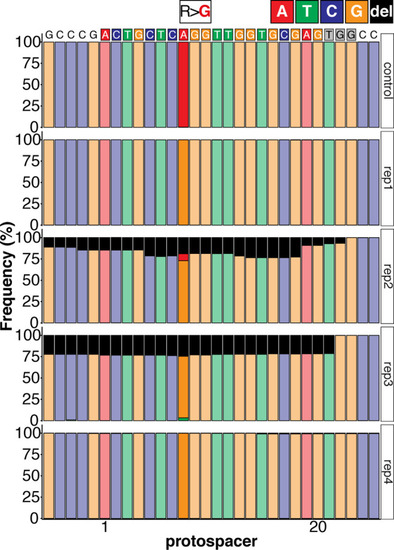

Figure 6—figure supplement 5.

Sequence composition determined by Amplicon-seq of ABE8e kcnh6a-R512 editants surrounding the kcnh6a-R512 sgRNA target site ± 5 bp.
Figure 7

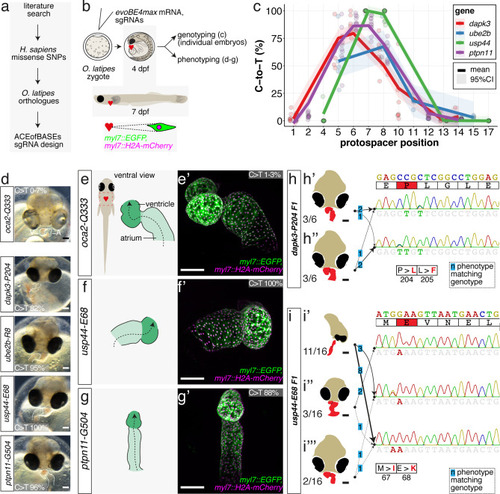

Cytosine base editing enables human CVD-associated SNV validation.

(a) Candidate human CVD gene SNV validation workflow. (b) To target the SNVs evoBE4max mRNA was co-injected into the 1 cell stage of the medaka wild-type or myl7::EGFP, myl7::H2A-mCherry reporter strain together with the corresponding target or oca2-Q333 (control) sgRNAs. Individual, imaged, embryos were then further analyzed to determine the rate of C-to-T transversions. (c) Cytosine editing efficiencies are substantial for all candidate genes tested. Data shown in Figure 7—figure supplement 2 was replotted, including all data points from a-d across all target cytosine along the protospacer. Sample numbers: dapk3-P204 (n = 7), ube2b-R8 (n = 5), usp44-E68 (n = 11), and ptpn11-G504 (n = 11). (d) Representative phenotypes of 4 dpf base edited embryos are shown for all four tested candidate CVD genes including oca2-Q333 controls. Top, ventral view, with V = ventricle, A = atrium. (e–g) Confocal microscopy of selected candidate validations in the reporter background. Hearts were imaged in 7 dpf hatched double fluorescent embryos. Images show maximum projections of the entire detectable cardiac volume with a step size of 1 µm. Cartoons (left) highlight the looping defects observed in usp44 and ptpn11 base edited embryos with ventricle-atrium inversion (f) or tubular heart (g). (e’-g’) Imaged embryos were subsequently genotyped and quantified C-to-T transversions for the target codon are shown. Note: due to the inverted nature of the confocal microscope used, raw images display a mirroring of observed structures, which we corrected here for simpler appreciation. Phenotypic analysis of F1 dapk3-P204L (h) and usp44-E68K (i) embryos revealed that homozygous changes at P204L or E68K lead to cardiac malformations with varying degree: looping (h’) and mild looping defects (h’’, i’’’); altered heart morphology (i’’). Bystander edits (hetero- or homozygous, usp44-E68K) lead to additional developmental defects, including brain and eye abnormalities (i’). Scale bar = 100 µm (d, e–i). dpf = days post fertilization.

Figure 7—figure supplement 1.

CVD-associated SNVs can be mapped to the orthologous medaka peptide sequence with high conservation and are expressed during heart development.

(a) Human (Hs) coding sequences for DAPK3, UBE2B, USP44, and PTPN11 around the missense mutations reported (Homsy et al., 2015; Zaidi et al., 2013), were obtained from the Ensemble genome browser and the orthologous medaka (Ol) sequences were mapped to these (release 103). (b) Gene expression data for medaka dapk3, ube2b, usp44, and ptpn11 at embryonic stages was extracted from Li et al., 2020 and plotted to show presence of transcript during heart development and the contribution of maternal transcripts, which dominate before zygotic genome activation at around stages 7–8 (32–64 cell stages; Kraeussling et al., 2011).
Figure 7—figure supplement 2.

Cytosine base editing allows the introduction of human CVD-associated missense mutations in medaka in F0.

(a–d) Following microinjection at the 1 cell stage of evoBE4max together with the respective sgRNAs, Sanger sequencing results were quantified by EditR (Kluesner et al., 2018). Results are plotted for the genomic loci of dapk3-P204 (n = 7), ube2b-R8 (n = 5), usp44-E68 (n = 11), and ptpn11-G504 (n = 11) and are depicted for the underlying phenotype (square: normal; circle: cardiac) according to the phenotypes grouped in supplement 3. The standard base editing window is depicted in blue. To highlight the dinucleotide context, the nucleotide preceding the target C is shown by red (A), green (T), blue (C) and yellow (G) squares below the respective C. (a’-d’) Sanger sequencing reads within the region of edited amino acids for the respective sgRNA experiment and locus. (b’-d’) sgRNAs mediating the C-to-T transition map to the complementary strand. Note: nucleotide position 27 shows a G/A SNP in the Cab genetic background used in this study for ube2b.

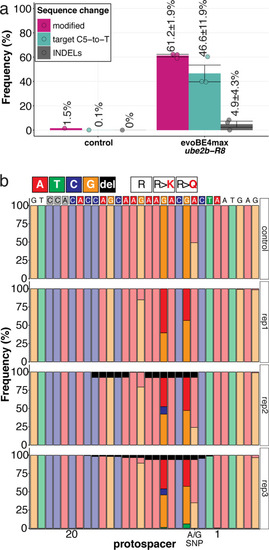

Figure 7—figure supplement 3.

Amplicon-seq of <italic toggle='yes'>ube2b-R8</italic> evoBE4max editants.

(a) Illumina sequencing of the target region in a subset (n = 3) of gDNA samples (single embryos) reveals quantitative target C5-to-T editing efficiencies as well as indel frequencies by. Aligned Illumina-reads analyzed, 21,768 (control); 24,613 (evoBE4max rep1); 57,332 (evoBE4max rep2); 51,273 (evoBE4max rep3). (b) Sequence composition following Amplicon-seq analysis surrounding the ube2b-R8 sgRNA target site ± 5 bp.
Figure 7—figure supplement 4.

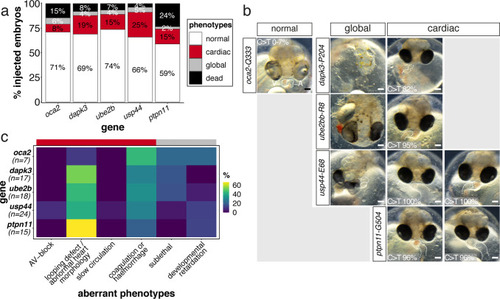

Phenotypic categorization of cytosine base edited embryos in medaka in F0.

(a) Microinjection of evoBE4max with the respective sgRNA for dapk3 (n = 74), ube2b (n = 91), usp44 (n = 79), and ptpn11 (n = 85) results in an increase in cardiovascular-associated phenotypes (‘cardiac’) compared to oca2 control editing (n = 62). (b) Exemplary phenotypes of 4 dpf embryos for the categories given in (a) (ventral view) with highlighting of the ventricle (V) and atrium (A). Here, embryos with morphological abnormalities or looping defects are shown in the ‘cardiac’ category. Quantification of base editing efficiencies (supplement 2) for the individual embryos is shown for the oca2 control (here: sequencing results for the four candidate loci given as range) and the ‘cardiac’ examples of the respective experiment. Scale bar = 100 µm. (c) Sub-categorization of the ‘cardiac’ and ‘global’ phenotypic groups shown as percentage of the sum of the two categories. dpf = days post fertilization.
Figure 7—figure supplement 5.

Confocal microscopy of evoBE4max validated CVD genes.

The full complement of analyzed CVD associated phenotypes in cytosine base editing of myl7::GFP, myl7::H2A-mCherry reporter embryos at 7 dpf. Note the mirroring effect of the confocal microscope used, placing the ventricle to the right, and the atrium to the left in the control. Quantified C-to-T transversions are shown for each imaged embryo for the target codon. Scale bar = 100 µm. dpf = days post fertilization.
Figure 7—figure supplement 6.

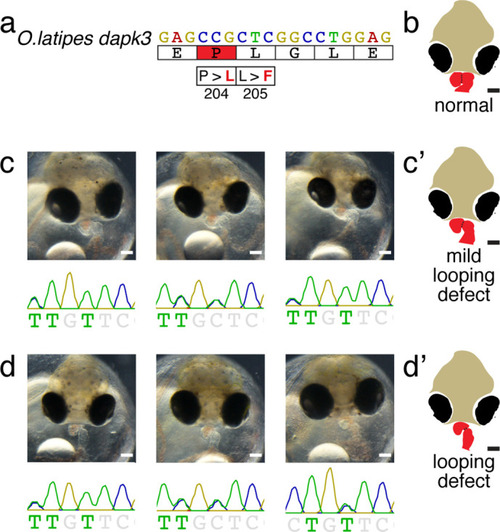

Phenotype-genotype correlation of dapk3-P204L/L205F embryos with mild (<bold>c</bold>) and moderate looping defects (<bold xmlns:xlink='http://www.w3.org/1999/xlink'>d</bold>).

Cartoons (c’ and d’) are shown in the main figure as summary of the phenotypic manifestation.
Figure 7—figure supplement 7.

Phenotype-genotype correlation of usp44-M67I/E68K embryos with mild looping defects (c), altered heart morphology with slight developmental delay (d) and severe alterations of heart morphology with concomitant strong global developmental defects (e).

Cartoons (c’, d’ and e’) are shown in the main figure as summary of the phenotypic manifestation.

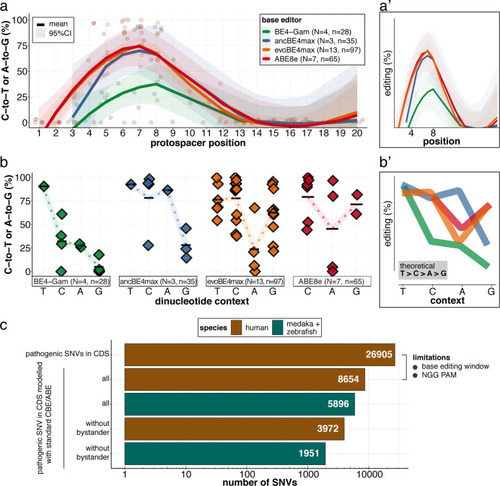

Figure 8.

Recapitulation of in vitro base editing characteristics combined with a plethora of conserved variants make fish excellent models to validate human pathogenic SNVs.

(a) Transition efficiencies for CBEs and ABE8e tested in this study in medaka across the entire protospacer are shown as mean with 95% confidence interval (CI). Each data point represents the mean efficiency for the locus (sgRNA) tested. N = represents the number of loci tested with the respective editor. n = total number of genomes used for quantification of editing efficiencies (a pool of five embryos was counted as five genomes). (a’) Simplified scheme only showing mean and CI. (b) Summary of dinucleotide preference for the tested base editors, calculated for the standard editing window (4-8). Each data point represents the mean editing efficiency of the corresponding editor for a particular protospacer position. (b’) Simplified scheme of overlaid dinucleotide logic. (c) Analysis of human pathogenic CDS SNVs annotated in ClinVar reveals that a remarkable portion of these SNVs have orthologous sequences in medaka or zebrafish that can be mimicked by CBEs or ABEs following editing window (4-8) and NGG PAM restrictions. Modeling SNVs mutations may be achieved with stringent criteria (no bystander mutations accepted, n = 1951) or less stringent selection (allowing bystander mutations ‘all’, n = 5896). Note: the number of SNVs shown for medaka + zebrafish, corresponds to a set-up in which these species are complementing each other.
