Fig. 6

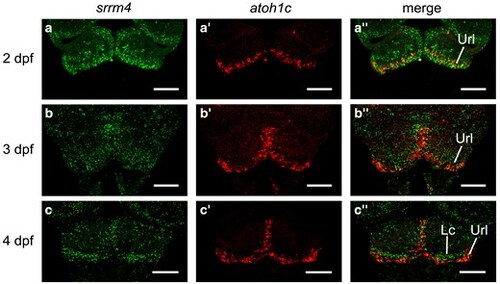

Srrm4 co-localizes with atoh1c in the Url. a–c″) srrm4 and atoh1c mRNA expression at 2–4 dpf. a–a″) Partial maximum intensity projection of Url at 2 dpf showing srrm4 (a), atoh1c (a′), and srrm4 and atoh1c merged (a″). b–b″) Partial maximum intensity projection of Url at 3 dpf showing srrm4 (b), atoh1c (b′), and srrm4 and atoh1c merged (b″). c–c″) Partial maximum intensity projection of Url and lobus caudalis at 4 dpf showing srrm4 (c), atoh1c (c′), and srrm4 and atoh1c merged (c″). Dorsal views. Anterior is to the top. Scale bars = 50 μm. Lc, lobus caudalis; Url, upper rhombic lip.

Expression Data

Genes:	atoh1c srrm4
Fish:	TL
Stage Range:	Long-pec to Day 4
