Fig. 2

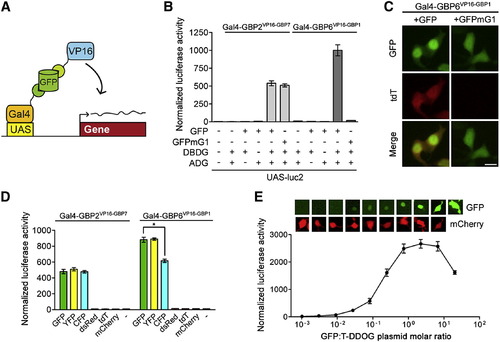

Characterization of the GFP-Dependent Transcription System

(A) Schematic of Gal4-based T-DDOGs.

(B) GFP-dependent activation of UAS-luc2 by Gal4-GBP6^VP16-GBP1 and Gal4-GBP2^VP16-GBP7. n = 9.

(C) Gal4-GBP6^VP16-GBP1 strongly activated UAS-tdT in the presence of GFP. Mutation of GBP1-binding residues in GFP (GFPmG1) abolished tdT activity. Scale bar, 10 μm.

(D) Specificity of T-DDOGs for different fluorescent proteins. n = 9; p < 0.001.

(E) Activity of Gal4-GBP6^VP16-GBP1 in response to a varying amount of transfected GFP plasmids. The transfected DNA amount was kept constant among conditions, with CAG-mCherry (bottom) acting as a filler plasmid to compensate for reduction in GFP (top) plasmids. Panels show representative GFP and mCherry fluorescence in single cells for each corresponding data point below. n = 6. Plots are mean ± SD.

See also Figures S1 and S2 and Table S2.
