Madelaine et al., 2011 - Partially redundant proneural function reveals the importance of timing during zebrafish olfactory neurogenesis. Development (Cambridge, England)   138(21):4753-4762 Full text @ Development
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Antibodies:
Fish:
Anatomical Terms:
Stage: Protruding-mouth
PHENOTYPE:
Fish:
Observed In:
Stage: Protruding-mouth

Fig. 8

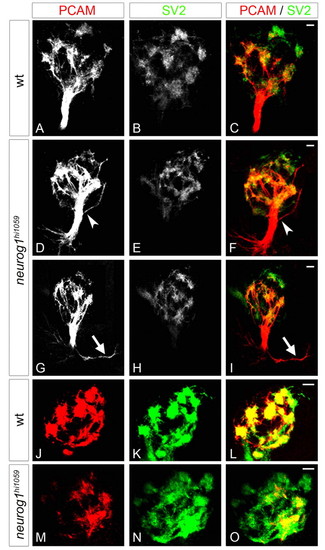

The fasciculation of olfactory axons and organisation of proto-glomeruli are flawed in neurog1 mutant zebrafish embryos. (A-I) Confocal projections of immunolabelling against PCAM and SV2 of olfactory projections in wild-type (A-C) and neurog1 mutant (D-I) embryos at 72 hpf. Whereas projections in wild-type embryos form a single fasciculated tract from the olfactory placode to the olfactory bulb, fasciculation (arrowheads in D,F) is aberrant in neurog1 mutant embryos; certain mutant embryos display abnormal guidance of projections immediately after they leave the placode (arrows in G,I). (J-O) Confocal projections of immunolabelling against PCAM and SV2 in the olfactory bulb in wild-type (J-L) and neurog1 mutant (M-O) embryos at 72 hpf. Proto-glomeruli appear less well organised in neurog1 mutant embryos relative to wild-type siblings. Embryos are viewed frontally (A-I) or dorsally with anterior up (J-O). Scale bars: 10 μM.

Gene Expression Details No data available
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab-SV2 IHC neurog1hi1059Tg/hi1059Tg standard conditions Protruding-mouth glomerular layer
IHC sb1Tg standard conditions Protruding-mouth glomerular layer
Ab1-ncam1b IHC neurog1hi1059Tg/hi1059Tg standard conditions Protruding-mouth primary olfactory fiber layer
IHC sb1Tg standard conditions Protruding-mouth primary olfactory fiber layer
Phenotype Details
Fish Conditions Stage Phenotype
neurog1hi1059Tg/hi1059Tg standard conditions Protruding-mouth axonal fasciculation disrupted, abnormal
Protruding-mouth glomerular layer morphology, abnormal
Protruding-mouth primary olfactory fiber layer morphology, abnormal
