Figure 3

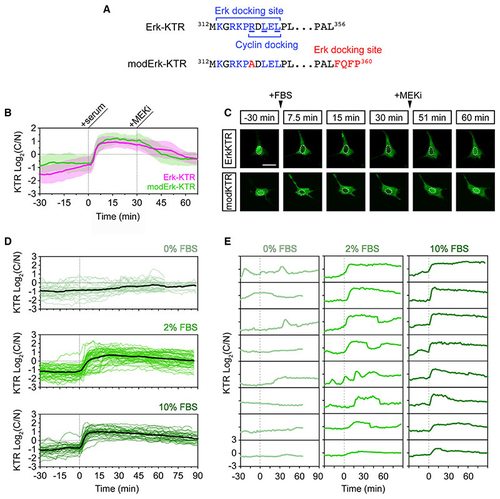

A modified Erk-KTR reports ERK activity in mouse fibroblasts

(A) Amino acid sequences of the Erk-docking domain of Erk-KTR and modified Erk-KTR (modErk-KTR) highlighting the modifications (red) made to reduce off-target reporter activity, including the R>A substitution within the docking site and the additional FQFP Erk-docking site between the ELK fragment and the NLS.

(B) Quantification of ERK activity in NIH-3T3 cells transfected with the Erk-KTR or modErk-KTR constructs (n = 58 cells each, mean ± SD). Cells were serum-starved overnight and ERK was induced by the addition of 10% FBS. ERK activity was inhibited after 30 min with 10 μM PD-0325901 (MEKi).

(D) Quantification of ERK activity in NIH-3T3 cells transfected with the modErk-KTR construct after overnight serum starvation, followed by the addition of different concentrations of FBS. Individual cell traces and the mean (black line) are shown for 0% FBS (n = 32 cells), 2% FBS (n = 57 cells), and 10% FBS (n = 30 cells).

(E) Individual cell traces from (D).

Scale bars, 20 μM.
