ZFIN Figure: Jackson et al., 2015, Fig. 8

ZFIN ID: ZDB-FIG-151112-27

ZFIN ID: ZDB-FIG-151112-27

Jackson et al., 2015 - Zebrafish Wnt9b Patterns the First Pharyngeal Arch into D-I-V Domains and Promotes Anterior-Medial Outgrowth. American Journal of Molecular Biology 5(3):57-83 Full text @ Am. J. of Molec. Bio.

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Gene:	pitx2
Fish:	AB AB + MO2-wnt9b
Knockdown Reagent:	MO2-wnt9b
Anatomical Terms:	palatoquadrate arch ventral mandibular arch
Stage:	Long-pec

PHENOTYPE:

Fish:	AB + MO2-wnt9b
Knockdown Reagent:	MO2-wnt9b
Observed In:	palatoquadrate arch ventral mandibular arch
Stage:	Long-pec

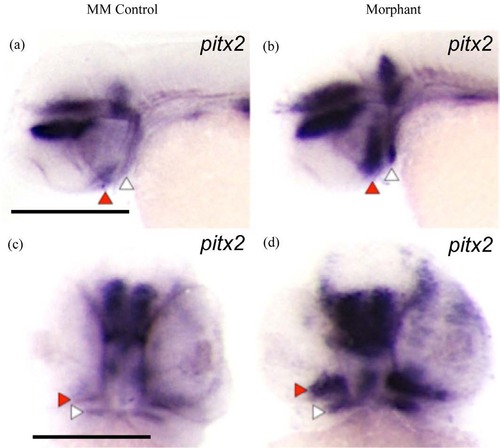

Fig. 8 Wnt9b morphants exhibit expanded pitx2 expression domains in the developing mouth. Top row = anterior to left, bottom row = anterior to front. MM control (n = 8) (a), (c) and morphant (n = 11) (b), (d) embryos were aged to 48hpf and stained with pitx2 riboprobe. 82% of morphant embryos exhibit expanded pitx2 expression within medial oral regions compared to controls. Red arrowheads indicate upper jaw, white arrowheads indicate lower jaw. Size bars = 100 µm.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
pitx2	AB	control	Long-pec	palatoquadrate arch	ISH
			Long-pec	ventral mandibular arch	ISH
	AB + MO2-wnt9b	standard conditions	Long-pec	palatoquadrate arch	ISH
			Long-pec	ventral mandibular arch	ISH

Antibody Labeling Details No data available

Phenotype Details

Fish	Conditions	Stage	Phenotype
AB + MO2-wnt9b	standard conditions	Long-pec	palatoquadrate arch pitx2 expression increased amount, abnormal
		Long-pec	palatoquadrate arch pitx2 expression increased distribution, abnormal
		Long-pec	ventral mandibular arch pitx2 expression increased amount, abnormal
		Long-pec	ventral mandibular arch pitx2 expression increased distribution, abnormal
