Fig. 2

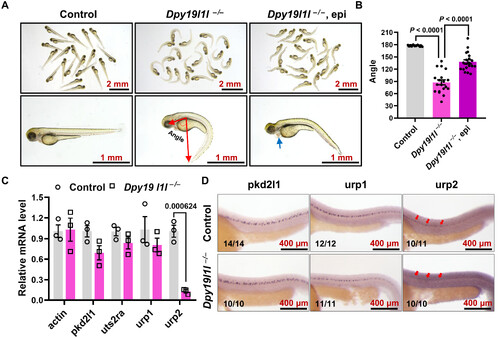

Urp2 transcription is substantial reduced in dpy19l1l mutants. (A) External phenotypes of control siblings, dpy19l1l−/− mutants, and epinephrine-treated dpy19l1l−/− mutants at 48 hpf. The schematic angle illustrates the quantification method in this study. The blue arrow indicates pericardial edema in epinephrine-treated mutants. (B) Body axis angles from (A) quantified with ImageJ (bar graph; means ± SEM). P values (unpaired t test) are shown above bars. (C) qPCR analysis of pkd2l1, uts2ra, urp1, and urp2 expression in control siblings and dpy19l1l−/− mutants at 36 hpf (means ± SEM, n = 3; number above the bar graph represent the P value). (D) WMISH of pkd2l1, urp1, and urp2 in control siblings and dpy19l1l−/− mutants at 36 hpf. The red arrows highlight diminished urp2 expression.

Expression Data

Genes:	pkd2l1 urp1 urp2 uts2r3
Fish:	AB dpy19l1l^{zf4348/zf4348} (AB)
Anatomical Terms:	floor plate spinal cord region whole organism
Stage:	Prim-25

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	dpy19l1l^{zf4348/zf4348} (AB)
Condition:	chemical treatment by environment: (R)-adrenaline
Observed In:	floor plate spinal cord region post-vent region whole organism
Stage Range:	Prim-25 to Long-pec

Phenotype Detail
