FIGURE

Figure S4.

ID

ZDB-FIG-250320-9

Publication

Doan et al., 2025 - Dock1 functions in Schwann cells to regulate development, maintenance, and repair

Other Figures

All Figure Page

Back to All Figure Page

Figure S4.

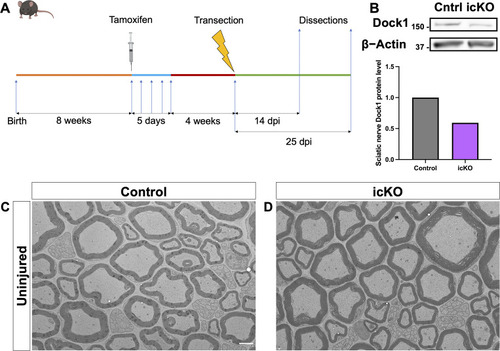

An inducible SC-specific Dock1 MUT mouse to study SC repair. (A) Schematic representation showing the experimental timeline for sciatic nerve injury studies using the icKO mice. (B) Western blot showing sciatic nerve Dock1 and β-actin protein levels from control and Dock1 icKO animals and quantification of normalized protein levels. (C and D) TEM micrographs of sciatic nerves from control-injected and tamoxifen-injected Plp^Cre+;Dock1^fl/fl mice before injury. (C and D) Scale bar = 2 µm. Source data are available for this figure: SourceData FS4.
