Figure 6

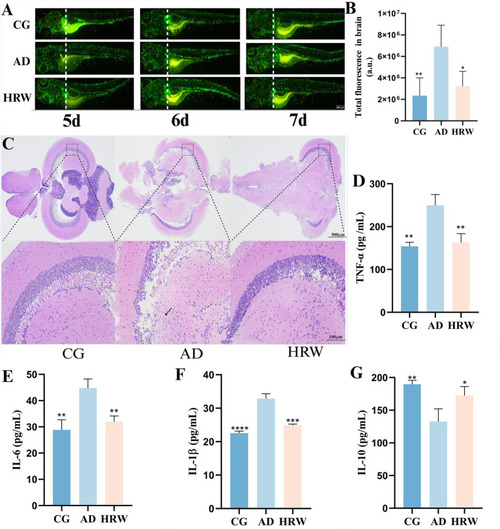

According to different zebrafish groups, the brain neutral particle fluorescence intensity, whole brain pathological section and whole brain tissue inflammatory factor levels. (A) Fluorescent aggregation of neutrophils in the brain of zebrafish (n = 3 per group). (B) Total fluorescence intensity. (C) Brain H&E staining, (D) TNF-α. (E) IL-6. (F) IL-1β. (G) IL-10 (n = 12 per group). The data are expressed as the mean ± SEM and were analyzed by one-way ANOVA followed by Tukey’s post-hoc test. Significance was defined as follows versus AD group *p < 0.05; **p < 0.01; ***p < 0.001; and ****p < 0.0001.

Expression Data

Genes:	il1b il6 il10 tnfa
Fish:	AB
Conditions:	chemical treatment by environment: aluminium trichloride chemical treatment by environment: aluminium trichloride
Anatomical Term:	brain
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	AB rj30Tg (AB)
Conditions:	chemical treatment by environment: aluminium trichloride chemical treatment by environment: aluminium trichloride
Observed In:	brain brain neuron brain neutrophil
Stage:	Adult

Phenotype Detail
