FIGURE

Figure 2.

ID

ZDB-FIG-230606-21

Publication

Hamling et al., 2023 - The Nature and Origin of Synaptic Inputs to Vestibulospinal Neurons in the Larval Zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Figure 2.

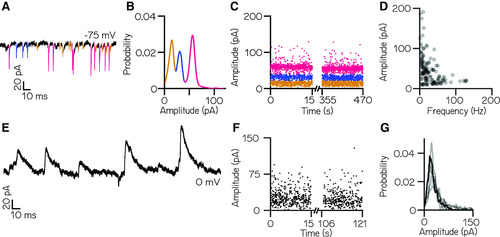

Larval zebrafish vestibulospinal neurons receive dense spontaneous synaptic input. A, Distinct amplitudes (color) in spontaneous EPSCs from a neuron held at –75 mV. B, EPSC amplitudes from a single vestibulospinal neuron show three distinct probability peaks, or “bins” (color). C, EPSC bins are stationary in time. D, EPSC amplitude as a function of frequency for all bins in all vestibulospinal neurons (115 bins, from 35 cells). E, Representative current trace from a vestibulospinal neuron held at 0 mV. F, IPSC amplitudes over time. G, IPSC amplitudes for the example neuron in panels E–F (black line) and other neurons (gray lines) do not show multiple peaks (n = 5).
