ZFIN ID: ZDB-FIG-120329-39
Zhu et al., 2012 - Activated ALK Collaborates with MYCN in Neuroblastoma Pathogenesis. Cancer Cell   21(3):362-373 Full text @ Cancer Cell
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Observed In:
Stage: Days 30-44

Fig. 8

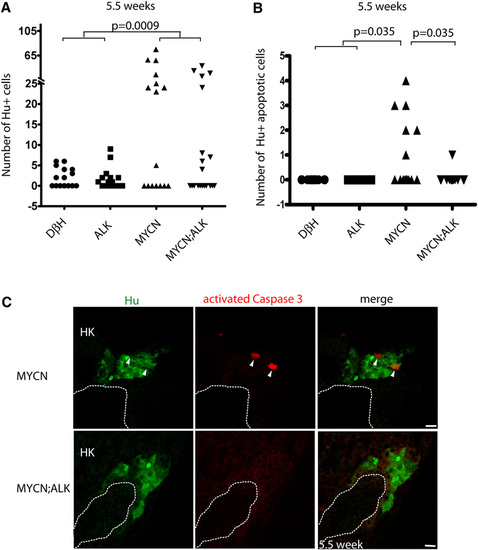

ALK Inhibits a Developmentally-Timed Apoptotic Response Triggered by MYCN Overexpression in the Interrenal Gland (A) Numbers of Hu+ interrenal gland cells in the DβH, ALK, MYCN, and MYCN;ALK fish at 5.5 wpf. Means of Hu+ cell numbers were compared by the two-tailed Wilcoxon signed-rank test. (B) Numbers of apoptotic Hu+ interrenal gland cells in the DβH, ALK, MYCN, and MYCN;ALK fish at 5.5 wpf. The numbers of transgenic fish at 5.5 wpf with apoptotic Hu+ cells in the interrenal gland were compared by two-tailed Fisher exact test. (C) Sagittal sections through the interrenal gland in MYCN (top panels) and MYCN;ALK (bottom panels) transgenic fish at 5.5 wpf (dorsal up, anterior left). Hu, green; activated Caspase-3, red. Hu+, activated Caspase-3+ apoptotic cells were detected in the MYCN transgenic fish (arrowheads). Dotted lines indicate the head kidney (HK) boundary. Scale bars represent 10 μm. See also Figure S7.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
zdf16Tg (AB) standard conditions Days 30-44 interrenal gland neuroblast apoptotic, abnormal
Acknowledgments:
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Cancer Cell, 21(3), Zhu, S., Lee, J.S., Guo, F., Shin, J., Perez-Atayde, A.R., Kutok, J.L., Rodig, S.J., Neuberg, D.S., Helman, D., Feng, H., Stewart, R.A., Wang, W., George, R.E., Kanki, J.P., and Look, A.T., Activated ALK Collaborates with MYCN in Neuroblastoma Pathogenesis, 362-373, Copyright (2012) with permission from Elsevier. Full text @ Cancer Cell
