Fig. 3

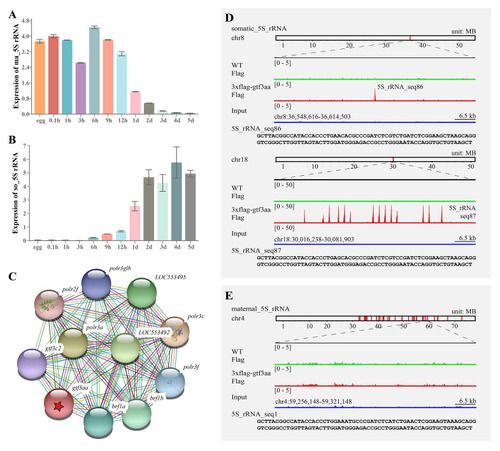

Gtf3aa binds to somatic 5S rRNA during zebrafish embryonic development. Expression patterns of maternal (A) and somatic (B) 5S rRNA during various stages of wild-type zebrafish embryogenesis. C Protein interaction networks for Gtf3aa. Each node represents an individual protein; colored nodes indicate the first shell of interactors. Unfilled nodes correspond to proteins with unknown three-dimensional (3D) structures, whereas filled nodes represent those with known or predicted structures. D IGV track view showing Gtf3aa binding at the somatic 5S rRNA gene region in 36 hpf wild-type embryos. Increased ChIP-seq peaks are highlighted with red dashed rectangles. E IGV track view showing Gtf3aa occupancy at the maternal 5S rRNA gene region in 36 hpf wild-type embryos
