FIGURE

Fig. 6

ID

ZDB-FIG-250611-57

Publication

Hawkey-Noble et al., 2025 - The P4-phospholipid flippase Atp11a is required for maintenance of eye and ear structure in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 6

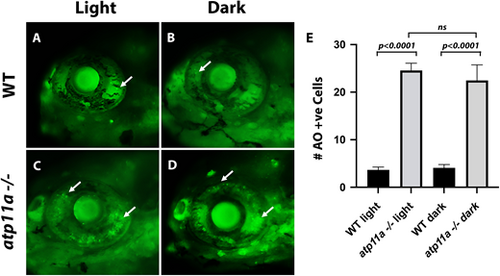

Cell death in atp11anl1007 mutant eyes. (A,B) Few dying cells (Acridine Orange positive, arrows) are observed in wild-type sibling eyes in light and dark conditions. (C,D) In atplla homozygous mutants, an increase in the number of Acridine Orange-positive cells (arrows) is observed in light and dark conditions. (E) Quantification of cell death (number of Acridine Orange-positive cells), presented as mean±s.e.m. Wild type light, n=9; homozygous mutant light, n=9; wild type dark, n=10; homozygous mutant dark, n=11. Significance testing was carried out using two-factor ANOVA. All larvae are at 6 dpf.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	atp11a^{nfl1007/nfl1007} (AB)
Condition:	lighting conditions
Observed In:	eye cell death
Stage:	Day 6

Phenotype Detail
