Fig. 6

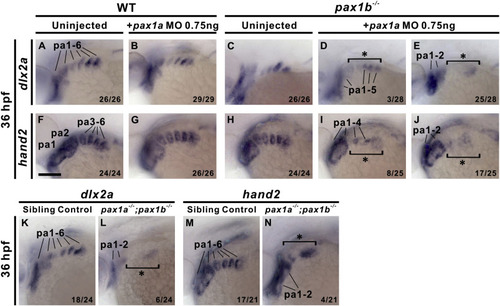

pax1a- and pax1b-deficient embryos display decreased or absent dlx2a and hand2 expression in pharyngeal arches. Reduced expression of dlx2a (D) or hand2 (I) as well as absence of dlx2a (E) or hand2 (J) in the posterior pharyngeal arches (pa) was identified in 0.75 ng pax1a MO-injected pax1b−/− mutant embryos compared to uninjected pax1b−/− mutant (C, H), wild types (WT; A, F) or 0.75 ng pax1a MO-injected wild types (B, G) at 36 hpf. Similar defects in expression of dlx2a (L) or hand2 (N) in the posterior pharyngeal arches were also identified in pax1a−/−; pax1b−/− double mutants compared with sibling controls (i.e., pax1a+/−; pax1b−/− or pax1a+/+; pax1b−/−) (K, M) at 36 hpf. Asterisks indicate reduced or absent expression. Affected embryos per total number of analyzed embryos are shown. Scale bars represent 100 μm.

Expression Data

Genes:	dlx2a hand2
Fish:	WT pax1b^as37/as37 WT + MO1-pax1a pax1b^as37/as37 + MO1-pax1a pax1a^as36/as36; pax1b^as37/as37
Knockdown Reagent:	MO1-pax1a
Anatomical Terms:	pharyngeal arch 1 pharyngeal arch 2 pharyngeal arch 3 pharyngeal arch 4 pharyngeal arch 5 pharyngeal arch 6
Stage:	Prim-25
