FIGURE

Fig. 8

ID

ZDB-FIG-200421-11

Publication

Liu et al., 2020 - Zebrafish Pax1a and Pax1b are required for pharyngeal pouch morphogenesis and ceratobranchial cartilage development

Other Figures

All Figure Page

Back to All Figure Page

Fig. 8

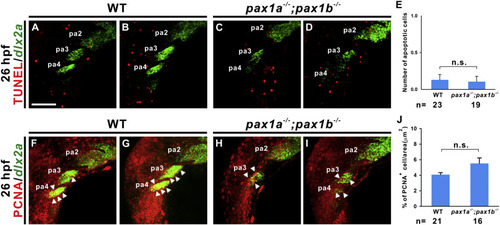

Similar levels of apoptosis and proliferation were identified in pharyngeal arches 3–4 of wild types and pax1a- and pax1b-deficienct embryos. TUNEL assay was performed in wild types (WT; A, B) and pax1a−/−; pax1b−/− double mutant (C, D) embryos that were hybridized with dlx2a antisense RNA at 26 hpf. Quantification of apoptotic cells in pharyngeal arches (pa) 3 and 4 in wild types and mutants is shown (E). Proliferation was evaluated by anti-PCNA antibody in wild types (F, G) and pax1a−/−; pax1b−/− double mutant (H, I) embryos that were hybridized with dlx2a antisense RNA at 26 hpf. Quantification of proliferation rate in pharyngeal arches 3 and 4 in wild types and mutants is shown (J). Arrowheads indicate neural crest cells labeled with PCNA and dlx2a. Statistical significance was evaluated by Student's t-test, NS, not significant. Error bars indicate standard error. Scale bar represents 100 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	pax1a^as36/as36; pax1b^as37/as37
Observed In:	pharyngeal arch apoptotic process pharyngeal arch cell population proliferation
Stage:	Prim-5

Phenotype Detail
