ZFIN ID: ZDB-FIG-190107-4
Blanco-Sánchez et al., 2018 - Grxcr1 Promotes Hair Bundle Development by Destabilizing the Physical Interaction between Harmonin and Sans Usher Syndrome Proteins. Cell Reports   25:1281-1291.e4 Full text @ Cell Rep.
ADDITIONAL FIGURES
EXPRESSION / LABELING:
Gene:
Antibodies:
Fish:
Anatomical Term:
Stage: Day 5
PHENOTYPE:
Fish:
Observed In:
Stage: Day 5

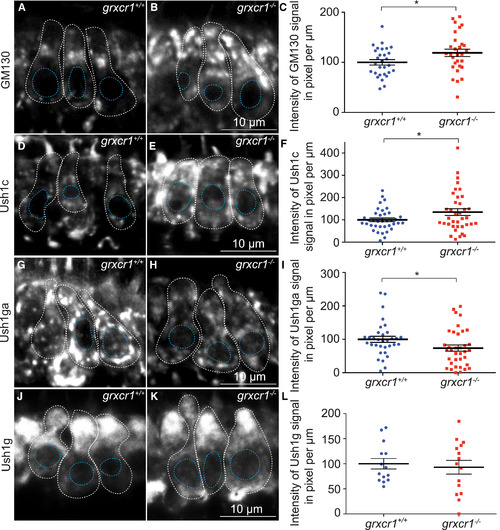

Fig. 6

The Integrity of the cis-Golgi and Abundance of Ush1c and Ush1ga Are Affected in grxcr1−/− Mutants

(A and B) Immunolabeling of GM130 in the anterior maculae of grxcr1+/+ (A) and grxcr1−/− (B).

(C) Quantification of GM130 signal intensity in grxcr1+/+ (n = 29 larvae) and grxcr1−/− (n = 29 larvae) anterior maculae.

(D and E) Immunolabeling of Ush1c in the anterior maculae of grxcr1+/+ (D) and grxcr1−/− larvae (E).

(F) Quantification of Ush1c signal intensity in the anterior macula of grxcr1+/+ (n = 37 larvae) and grxcr1−/− larvae (n = 37 larvae).

(G and H) Immunolabeling of Ush1ga in the anterior maculae of grxcr1+/+ (G) and grxcr1−/− larvae (H).

(I) Quantification of Ush1ga signal intensity in grxcr1+/+ (n = 33 larvae) and grxcr1−/− larvae (n = 36 larvae).

(J and K) Immunolabeling of Ush1g in the anterior maculae of grxcr1+/+ (J) and grxcr1−/− larvae (K).

(L) Quantification of Ush1g signal intensity in grxcr1+/+ (n = 14 larvae) and grxcr1−/− larvae (n = 15 larvae).

Data were normalized to grxcr1+/+ and are represented as mean ± SEM. p < 0.05; 5 dpf.

Gene Expression Details
Gene Antibody Fish Conditions Stage Anatomy Assay
ush1ga WT standard conditions Day 5 hair cell anterior macula IHC
Ab1-ush1ga Day 5 hair cell anterior macula IHC
Ab1-ush1ga grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula IHC
Day 5 hair cell anterior macula IHC
Antibody Labeling Details
Antibody Assay Fish Conditions Stage Anatomy
Ab1-golga2 IHC WT standard conditions Day 5 hair cell anterior macula
IHC grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula
Ab1-ush1ga IHC WT standard conditions Day 5 hair cell anterior macula
IHC grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula
Ab5-ush1c IHC WT standard conditions Day 5 hair cell anterior macula
IHC grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula
Phenotype Details
Fish Conditions Stage Phenotype
grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula ush1ga expression decreased amount, abnormal
Day 5 hair cell anterior macula ab1-golga2 labeling increased amount, abnormal
Day 5 hair cell anterior macula Ab1-ush1ga labeling decreased amount, abnormal
Day 5 hair cell anterior macula Ab5-ush1c labeling increased amount, abnormal
Day 5 hair cell anterior macula Golgi apparatus functionality, abnormal
