ZFIN ID: ZDB-FIG-190107-1
Blanco-Sánchez et al., 2018 - Grxcr1 Promotes Hair Bundle Development by Destabilizing the Physical Interaction between Harmonin and Sans Usher Syndrome Proteins. Cell Reports   25:1281-1291.e4 Full text @ Cell Rep.
ADDITIONAL FIGURES
PHENOTYPE:
Fish:
Observed In:
Stage: Day 5

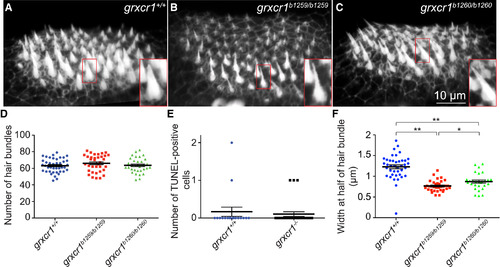

Fig. 1

Grxcr1 Is Required for Stereocilium Widening in the Anterior Macula

(A–C) Phalloidin staining of the whole anterior macula in grxcr1+/+ (A), grxcr1b1259/b1259 (B), and grxcr1b1260/b1260 mutant larvae (C).

(D) Average number of hair bundles in grxcr1+/+ (n = 41 larvae), grxcr1b1259/b1259 (n = 35 larvae), and grxcr1b1260/b1260 mutant larvae (n = 32 larvae).

(E) Number of TUNEL-positive cells in grxcr1+/+ (n = 18 larvae) and grxcr1−/− mutant larvae (n = 28 larvae).

(F) Average hair bundle width at half their height in grxcr1+/+ (n = 40 larvae), grxcr1b1259/b1259 (n = 34 larvae), and grxcr1b1260/b1260 mutant larvae (n = 36 larvae).

Data are represented as mean ± SEM. p < 0.05, ∗∗p < 0.01; 5 dpf.

Gene Expression Details No data available
Antibody Labeling Details No data available
Phenotype Details
Fish Conditions Stage Phenotype
grxcr1ab1259/b1259 standard conditions Day 5 hair cell anterior macula decreased width, abnormal
Day 5 hair cell anterior macula increased height, abnormal
Day 5 hair cell anterior macula morphology, abnormal
grxcr1ab1260/b1260 standard conditions Day 5 hair cell anterior macula decreased width, abnormal
Day 5 hair cell anterior macula increased height, abnormal
Day 5 hair cell anterior macula morphology, abnormal
