FIGURE

Fig. 4

ID

ZDB-FIG-260702-128

Publication

Breuer et al., 2026 - Chd7 regulates lipid metabolism and swim bladder inflation in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

Fig. 4

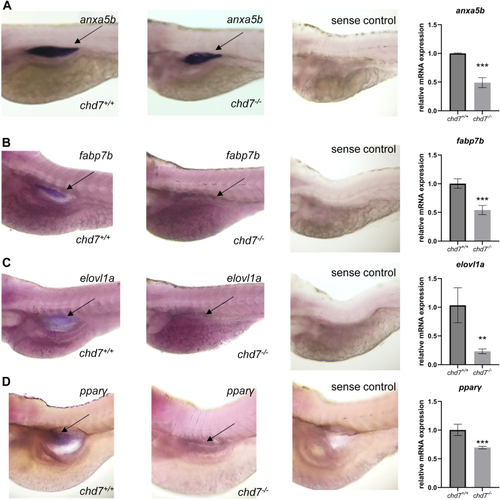

Pparγ regulated lipid metabolism. A–D: Representative images for WISH of 5dpf chd7^+/+ and chd7^−/− larvae, including sense control, as well as results for RT-qPCR of key lipid genes in the swim bladder showing significant reduction for anxa5, fabp7b, elovl1 and pparγ at 5dpf. WISH (N = 3, n = 18–20 larvae for each staining) and RT-qPCR (N = 4 from 15 pooled fish per sample/genotype). Larvae for each experiment were taken from age-matched chd7^+/+ or chd7^−/− independent clutches (N = 3–4; significance: ∗P < 0.05; ∗∗P < 0.01; ∗∗∗P < 0.001; Error bars represent SD).

Expression Data

Genes:	anxa5b elovl1a fabp7b pparg
Fish:	WT chd7^{zf4383/zf4383}
Anatomical Terms:	swim bladder whole organism
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	chd7^{zf4383/zf4383}
Observed In:	swim bladder whole organism
Stage:	Day 5

Phenotype Detail
