FIGURE

Fig. 5

ID

ZDB-FIG-250410-18

Publication

Liu et al., 2025 - Knockout of the fcsk gene in zebrafish causes neurodevelopmental defects

Other Figures

All Figure Page

Back to All Figure Page

Fig. 5

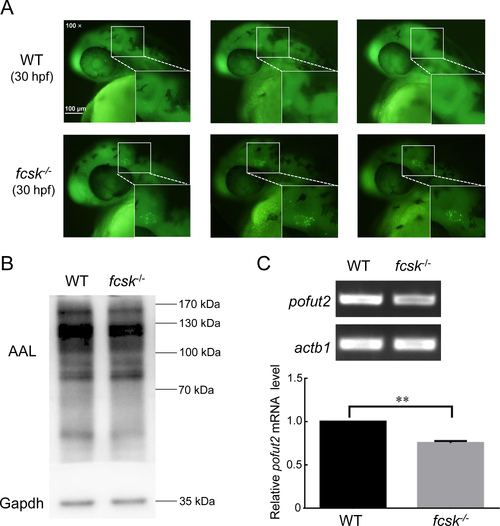

Increased apoptosis in midbrain-hindbrain boundary and decreased expression of fucosylated proteins and pofut2 in fcsk−/− zebrafish A: Representative acridine orange (AO) staining results of WT (n=22) and fcsk−/− (n=21) larvae (30 hpf). White box: Mid-hindbrain boundary. Enlarged images of white boxed areas are shown in lower right corner. Scale bar: 100 μm. B: Western and lectin blot analyses of WT and fcsk−/− zebrafish at 5 dpf. Gapdh was used as an internal control. n=20 larvae (5 dpf) per genotype. AAL: Aleuria aurantia lectin. n=3. C: Agarose gel electrophoresis (upper) and statistical analysis (lower) of semi-quantitative RT-PCR for pofut2 expression in WT and fcsk−/− zebrafish (5 dpf). n=3. Mean±SEM. **: P<0.01.

Expression Data

Gene:	pofut2
Fish:	AB fcsk^{hzu301/hzu301} (AB)
Anatomical Term:	whole organism
Stage:	Day 5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	fcsk^{hzu301/hzu301} (AB)
Observed In:	midbrain hindbrain boundary apoptotic process whole organism whole organism protein O-linked fucosylation
Stage Range:	Prim-15 to Day 5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Zool Res
