Fig 2

Larval zebrafish optic system, optic nerve transection, and axon regeneration timeline.

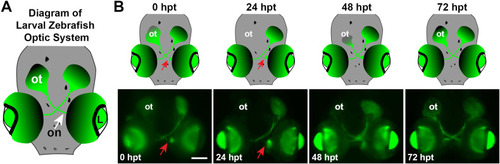

A. Diagram of the uninjured 5 dpf zebrafish larvae optic system, dorsal view, anterior to the bottom. B. Diagrams and images of Tg(isl2b:GFP) larvae demonstrating the visual system, axonal injury, and regeneration process from 0 hpt - 72 hpt. Red arrows indicate points of optic nerve injury in the left eye. L, lens; ot, optic tectum; on, optic nerve. Scale bar = 100 µm.
