Fig. 9

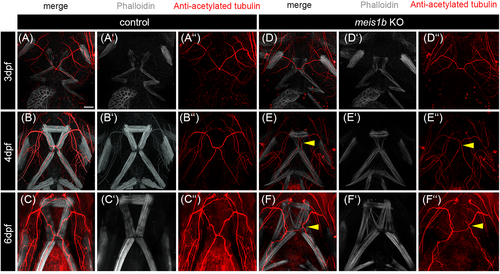

The position of the trigeminal nerve reflected misshapen muscles. Whole-mount antibody co-staining of nerves with anti-acetylated tubulin (red, A″–C″, D″–F″) and muscles with phalloidin (white, A′–C′, D′–F′). Arrowheads in (E–E″) indicate misshapen pattern of the trigeminal nerve which corresponds to disrupted intermandibularis posterior and hyohyal muscles. Malformation of the trigeminal nerve is even more apparent at 6 dpf in meis1b mutants (arrowheads in F–F″). Scale bar = 30 μm.
