Fig. 5

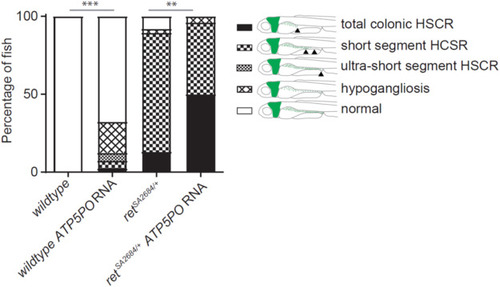

ATP5PO overexpression shows epistasis with RET. Quantification of the percentage of larvae presenting with ENS phenotypes reminiscent of HSCR in the different experimental groups. Due to ATP5PO overexpression in the retSA2684/+ background, more larvae significantly present with a phenotype reminiscent of total colonic HSCR (black bars), compared to retSA2684/+ alone. ***p < 0.001, **p < 0.01. |
