Fig. 4

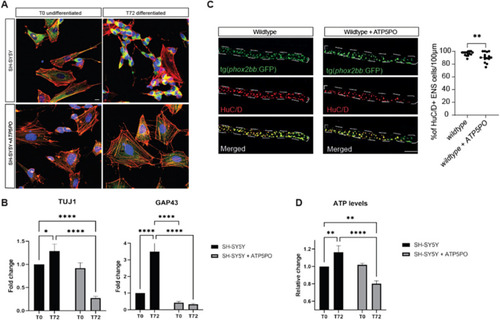

Overexpression of ATP5PO impairs neuronal differentiation and production of ATP levels. A. Representative images of undifferentiated (T0) and differentiated (T72) control SH-SY5Y and SH-SY5Y-ATP5PO cells. Phalloidin in red, TUJ1 in green and DAPI in blue. A differentiated neuronal morphology was only observed in control cells. Moreover, TUJ1 expression was reduced in SH-SY5Y-ATP5PO cells when compared to SH-SY5Y. Scale bar represents 50 μm. B. RT-qPCR data showing increased expression of neuronal markers (TUJ1 and GAP43) in control SH-SY5Y cells 72 h after differentiation, but not in SH-SY5Y-ATP5PO cells. Mean of two technical replicates is visualized. (two-way ANOVA TUJ1: effect of ATP5PO overexpression p < 0.01, effect of differentiation p < 0.05, and interaction effect between genotype and differentiation p < 0.01; GAP43: effect of ATP5PO overexpression p < 0.0001, effect of differentiation p < 0.0001, and interaction effect between genotype and differentiation p < 0.0001) C. HuC/D stainings performed at 4 dpf showed that overexpression of ATP5PO in zebrafish, leads to reduced neuronal differentiation. D. ATP levels in control SH-SY5Y cells increase, as expected, upon induction of differentiation, whereas in SH-SY5Y-ATP5PO cells there is a decrease in ATP levels; **p < 0.01, ****p < 0.0001. A–B and D Average of three independent experiments is visualized. (For interpretation of the references to colour in this figure legend, the reader is referred to the web version of this article.)
