Figure Caption

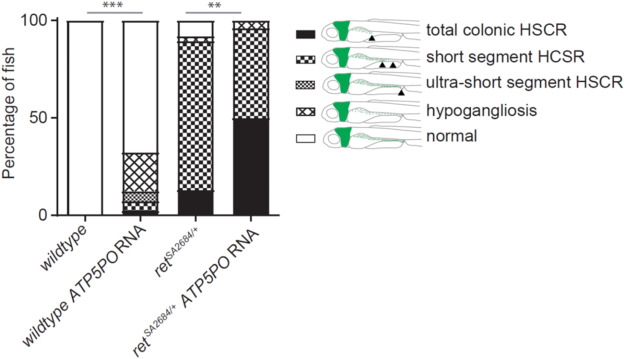

Fig. 5 ATP5PO overexpression shows epistasis with RET. Quantification of the percentage of larvae presenting with ENS phenotypes reminiscent of HSCR in the different experimental groups. Due to ATP5PO overexpression in the retSA2684/+ background, more larvae significantly present with a phenotype reminiscent of total colonic HSCR (black bars), compared to retSA2684/+ alone. ***p < 0.001, **p < 0.01.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Biochimica et biophysica acta. Molecular basis of disease, 1870(3), Kuil, L.E., Chauhan, R.K., de Graaf, B.M., Cheng, W.W., Kakiailatu, N.J.M., Lasabuda, R., Verhaeghe, C., Windster, J.D., Schriemer, D., Azmani, Z., Brooks, A.S., Edie, S., Reeves, R.H., Eggen, B.J.L., Shepherd, I.T., Burns, A.J., Hofstra, R.M.W., Melotte, V., Brosens, E., Alves, M.M., ATP5PO levels regulate enteric nervous system development in zebrafish, linking Hirschsprung disease to Down Syndrome, 166991, Copyright (2023) with permission from Elsevier. Full text @ BBA Molecular Basis of Disease
