Figure 2.

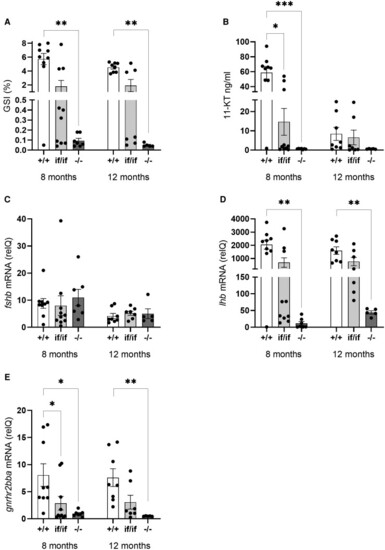

Gonadosomatic indices (GSI; A), plasma 11-ketotestosterone (11-KT; B), pituitary fshb (C), lhb (D), and gnrhr2bba (E) mRNA levels in F1 salmon males, showing fshr wild-type (+/+), double allelic in-frame (if/if), or double allelic loss of function mutation (−/−) genotypes, sampled at 8 and 12 months after the start of the maturation-inducing treatment (6 weeks of constant light and 16 °c water temperature, starting February 4, 2020). Data are presented as mean ± SEM. Significant differences between genotypes are indicated by asterisks (*P < .05, **P < .001, ***P < .0001).
