Fig. 3

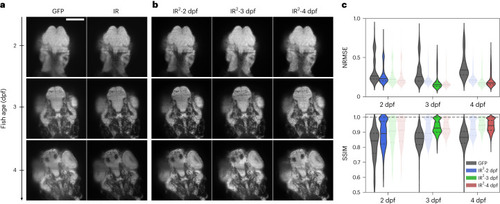

The quality of IR2 images is robust over large developmental intervals.

a, Representative GFP and IR images of a single z plane in a full 3D stack of Tg(kdrl:GFP) zebrafish larvae at 2, 3 and 4 d after fertilization. Scale bar, 100 µm. dpf, days post fertilization. b, Image reconstructions obtained from IR2 models trained with images from 2, 3 and 4 dpf zebrafish larvae. c, Quantification of image quality as measured with the NRMSE and SSIM from the GFP image as well as the images obtained after IR2 reconstruction. Values were averaged over all patches extracted from four different samples per age group. Non-transparent violin plots represent the values from the GFP images and the images reconstructed from the IR2 network matching the zebrafish age. Transparent violin plots represent reconstruction performed with networks from other developmental stages. Horizontal solid and dashed lines represent the mean and quartile values, respectively.
