Fig. 1.

ID

ZDB-FIG-230529-28

Publication

Haerlingen et al., 2023 - Mesodermal FGF and BMP govern the sequential stages of zebrafish thyroid specification

Other Figures

All Figure Page

Back to All Figure Page

Fig. 1.

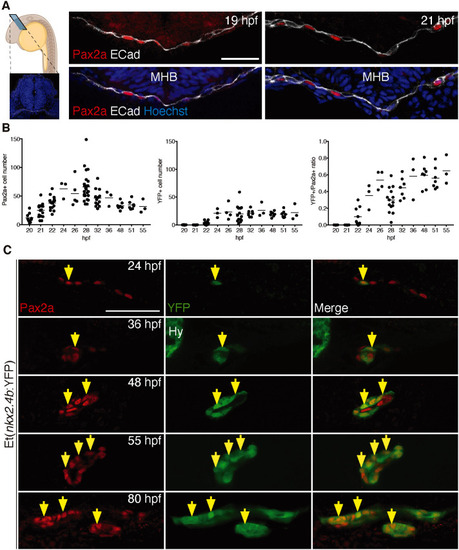

Sequential induction of thyroid transcription factors in foregut endoderm. (A) Panel on the left shows a schematic of a zebrafish embryo depicting the sectioning plane and a cross-section highlighting the anatomical organization of the region analyzed; E-cadherin (Cadherin 1; white) labels epithelia and DAPI (blue) cell nuclei. Panels on the right show Pax2a expression in anterior foregut endoderm (labeled with E-cadherin) before thyroid anlage formation. Confocal images of cross-sections at the level of the MHB are shown. (B) Total number of foregut endodermal cells expressing Pax2a (left) and YFP (middle) in Et(nkx2.4b:YFP) embryos and proportion of Pax2a⁺/YFP⁺ cells within the Pax2a⁺ cell population (right). Values determined in individual embryos (dots) and mean values (bars) are shown. (C) Pax2a and YFP expression in thyroid region of Et(nkx2.4b:YFP) embryos. Confocal images of sagittal (24-55 hpf) and coronal sections (80 hpf) are shown with arrows marking selected cells co-expressing Pax2a and YFP. Anterior is to the left. Hy, YFP expression in hypothalamus. Scale bars: 25 µm.
