Fig 4

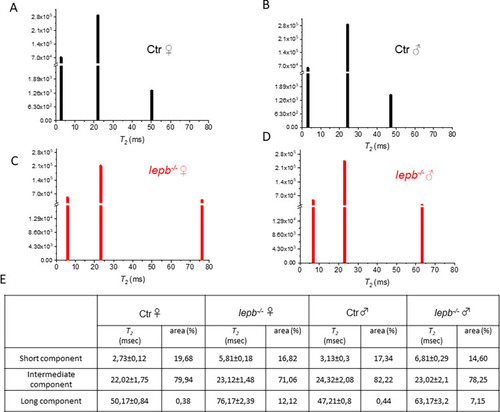

Multicomponent analysis of the experimental T2 relaxation decay curves using a non-negative least square based algorithm (NNLS).
NNLS least-squares spectra of (A) Ctr ♀ (B) Ctr ♂ (C) lepb-/- ♀ and (D) lepb-/- ♂ zebrafish in ROIs located in the fat infiltered muscle area. (E) Time and amplitude of various T2 components (short, intermediate, and long) in msec ± SD and the percentage of areas for each component. |
