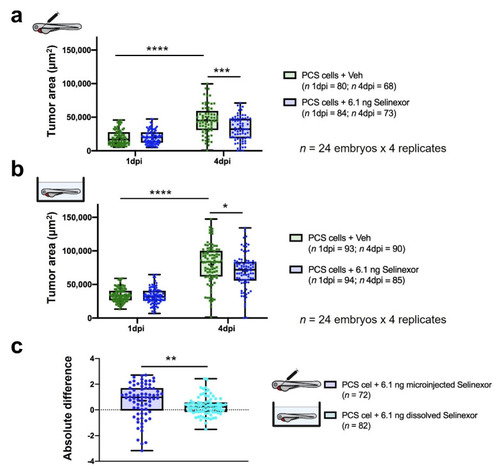

Figure 7

In vivo efficacy of 6.1 ng of selinexor against PCS xenografts comprising 888mel mCherry cells contrasting direct intratumoral injection vs. immersion. (a) Tumor areas (TA) of engrafted embryos treated with selinexor or vehicle (56.25% DMSO + 10% Tween 20 + saline solution) administered by intratumoral microinjection. (b) As (a) but treated with selinexor or vehicle (E3 medium + 0.014% DMSO) administered by immersion. (c) Absolute difference in the efficacy of 6.1 ng of selinexor administered by intratumoral injection or immersion between treatment and control groups determined for embryos that survived until 4 dpi. Only zebrafish that showed a tumor area higher than a pre-defined threshold were considered for the analyses. Data are presented as box-leaf plots, where the box indicates IQR, line the median value and leafs the 5–95 percentile range. Each dot represents an individual embryo. To determine significance, an unpaired t-test or the Wilcoxon matched-pairs signed rank test was performed. For absolute differences, data were analyzed by a Mann–Whitney test. (* = p-value < 0.05; ** = p-value < 0.01; *** = p-value < 0.001; **** = p-value < 0.0001).
