FIGURE

Fig. 7

ID
ZDB-FIG-210610-24
Publication
Yang et al., 2021 - Investigating the role of dachshund b in the development of the pancreatic islet in zebrafish
Other Figures
All Figure Page
Back to All Figure Page

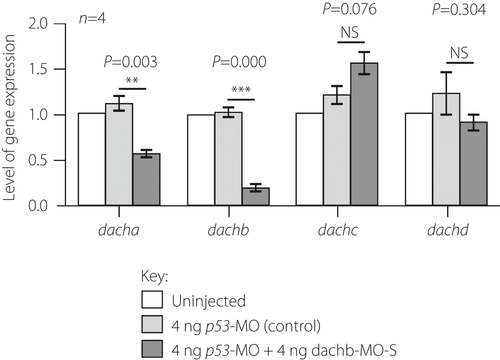

Fig. 7

Effect of dachb knockdown on the expression of dach genes. Embryos were either uninjected or they were injected with 4 ng p53-MO or with 4 ng splice-blocking dachb-morpholino (dachb-MO-S) + 4 ng p53-MO and then the reverse transcription polymerase chain reaction was carried out to determine any changes in the expression of dacha, dachb, dachc and dachd. As expected, the expression of dachb was downregulated significantly in the p53-MO + dachb-MO group when compared with the two control groups. There was also a significant reduction of dacha expression compared with the control groups. The data are presented as the mean ± standard error of four experiments per treatment. The asterisks indicate p53-MO + dachb-MO data that are significantly different from the p53-MO alone injected controls for each of the four genes at P < 0.01** or P < 0.001*** using the Student’s t-test. NS, not significant.

Expression Data
Genes:
Fish:
Knockdown Reagents:
Anatomical Term:
Stage: Prim-15

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage: Prim-15

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J Diabetes Investig
