FIG. 8.

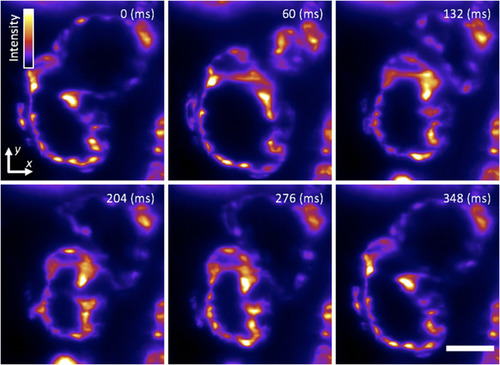

Cardiac light-sheet imaging. Single-plane SPIM recording of the beating heart in a live 5-dpf larval zebrafish with the endocardium fluorescently labeled (GFP), showing six distinct time points during the cardiac beating cycle. These subcellular 2D images are comparable to our previous efforts²¹ as well as recent work by others.³¹ A false-color (fire) lookup table was used to enhance visualization. Frames were captured with a magnification of 11× and 5 ms exposure time at a rate of 85 frames/s. Figure 9 (Multimedia view) shows a movie of the same data. Scale bar: 50 µm.
