Figure 6

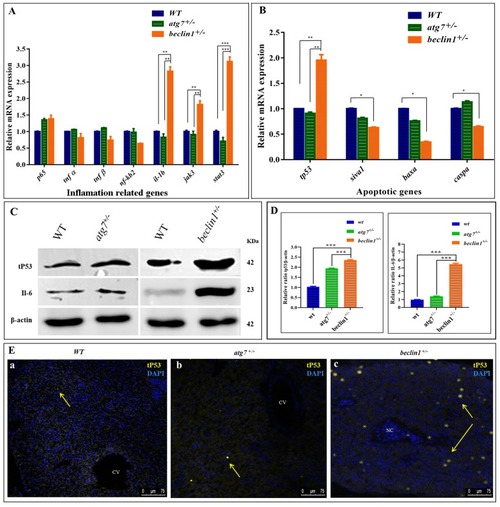

Abnormal apoptosis and inflammation response in beclin1^+/− liver. Expressions of mRNA in 16-month-old zebrafish evaluated by qRT-PCR for inflammation-related genes (A) and apoptotic-related genes (B). (C) Representative immunoblots showed the relative protein expression of tP53, IL-6. β-actin was used as the vehicle control. (D) The ratio of tP53/β-actin and IL-6/β-actin evaluated by NIH software Image J. (E) Immunofluorescence of liver tissues probed against mutated tP53. The nuclei of the necrosis hepatocytes indicated the genomic instability and DNA damage in tumor cells (yellow arrows). CV: central vein; NC: Necrosis. Data expressed as mean ± SD. * p < 0.05, ** p < 0.01, and *** p < 0.001.

Expression Data

Genes:	baxa caspa il1b jak3 nfkb2 rela siva1 stat3 tnfa tnfb tp53
Antibodies:	Ab2-il6 Ab13-tp53
Fish:	AB atg7^hza54/+ (AB) atg7^hza55/+ (AB) becn1^hza56/+ (AB)
Anatomical Term:	male organism liver
Stage:	Adult

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	atg7^hza54/+ (AB) atg7^hza55/+ (AB) becn1^hza56/+ (AB)
Observed In:	male organism liver
Stage:	Adult

Phenotype Detail
