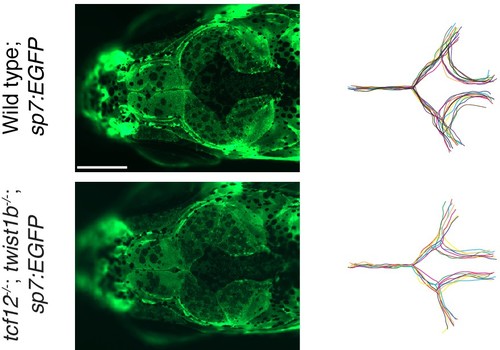

Accelerated bone fronts in tcf12; twist1b mutants transgenic for sp7:EGFP.
Live imaging of sp7:EGFP was performed on wild-type sibling controls (n = 11) and tcf12; twist1b mutants (n = 7) at 10 mm standard length. Dorsal views of the skull bones showed accelerated and dysmorphic bone fronts in all mutants examined. To the right, bone fronts of individual fish were traced and overlaid according to genotype. Scale bar, 250 µm.
|Ab1-sp7||IHC||b1212Tg||standard conditions||Days 30-44|
|IHC||twist1bel570/el570; tcf12el548/el548; b1212Tg||standard conditions||Days 30-44|
