Fig. 7
- ID
- ZDB-FIG-160818-33
- Publication
- Muthu et al., 2016 - Rx3 and Shh direct anisotropic growth and specification in the zebrafish tuberal/anterior hypothalamus
- Other Figures
- (all 13)
- All Figure Page
- Back to All Figure Page

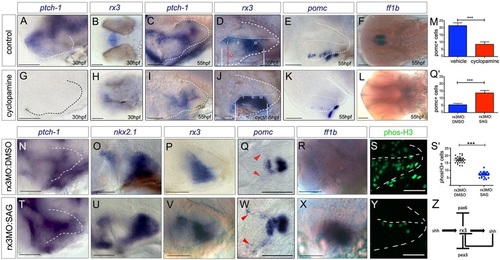

Shh signalling functions as an rx3 ‘on-off’ switch. (A-L) Side or ventral views of 30hpf and 55hpf wild-type embryos, exposed to vehicle or cyclopamine over 10-28hpf (A,B,G,H) or over 28-55hpf (C-F,I-L). Red arrows and white bars in D,J show distances measured for width and length of tuberal/anterior hypothalamus. (M) Quantitative analysis: significantly fewer pomc+ cells are detected after cyclopamine exposure (***P<0.0001, n=30 embryos). (N-Y) Side or ventral views of 55hpf rx3 morphant embryos, exposed to DMSO vehicle (N-S) or SAG (T-Y) from 28hpf. (Q′,S′) Quantitative analysis. Significantly more pomc+ cells (Q′; ***P<0.0001, n=30 embryos) and significantly fewer phosH3+ cells (S′; ***P<0.0001, n=27 embryos) are detected after late SAG rescue. (Z) Model for anterior/tuberal progenitor development. Scale bars: 50µm. |
