Fig. S7

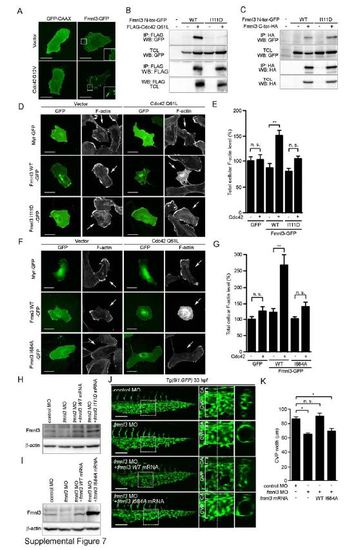

Cdc42 Activates Fmnl3 to Induce Actin Polymerization. Related to Figure 7. (A) HUVECs were transfected with the plasmid expressing either membrane-targeted GFP (GFP-CAAX, 1 µg) or Fmnl3-GFP (1 µg) together with the empty vector (0.1 µg) or that encoding FLAG-tagged constitutive active form of Cdc42 (Cdc42 G12V, 0.1 µg). The boxed areas are enlarged in the insets. (B) 293T cells were transfected without (-) or with (+) the plasmid encoding either Fmnl3 N-ter-GFP (WT) or Fmnl3 N-ter I111D-GFP (I111D) together with the empty vector or that encoding FLAG-tagged constitutive active form of Cdc42 (FLAG-Cdc42 Q61L) as indicated at the top. Immunoprecipitates (IP: FLAG) of cell lysates and aliquots of total cell lysate (TCL) were subjected to Western blot analyses with anti-GFP and anti-FLAG antibodies as indicated on the left. Note that Fmnl3 N-ter-GFP I111D mutant failed to associate with active form of Cdc42. (C) 293T cells were transfected with the plasmid encoding either Fmnl3 N-ter-GFP (WT) or Fmnl3 N-ter-GFP I111D (I111D) together without (-) or with (+) the vector encoding C-terminally HA-tagged Fmnl3 C-ter mutant (Fmnl3 C-ter-HA) as indicated at the top. Immunoprecipitates (IP: HA) of cell lysates and aliquots of total cell lysate (TCL) were subjected to Western blot analyses with anti-GFP and anti-HA antibodies as indicated on the left. (D) HUVECs transfected with the plasmid encoding Myr-GFP (1 mg), Fmnl3 WT-GFP (1 µg) or its mutant incapable of binding to Cdc42 (Fmnl3 I111D-GFP, 1 µg) together with the empty vector (0.1 µg) or the plasmid expressing Cdc42 Q61L (0.1 µg) were stained with rhodamine-phalloidin (F-actin), as in Figure 6C. Arrows indicate GFP signal-positive cells. (E) Total cellular F-actin levels as observed in D were quantified, as in Figure 6D. Data are expressed as percentages relative to that observed in cells transfected with the empty vector and the Myr-GFP-expressing plasmid, and shown as means ± s.e.m. (n=15). (F) HUVECs transfected with the plasmid encoding either Myr-GFP (1 µg), Fmnl3 WT-GFP (1 µg) or its catalytically inactive mutant (Fmnl3 I684A-GFP, 1 µg) together with the empty vector (0.1 µg) or the plasmid expressing Cdc42 Q61L (0.1 µg) were stained with rhodamine-phalloidin (F-actin), as in Figure 6C. (G) Total cellular F-actin levels as observed in F were quantified, as in Figure 6D. Data are expressed as percentages relative to that observed in the cells transfected with empty vector and Myr-GFP-expressing plasmid, and shown as mean ± s.e.m. (n≥12). (H and I) Lysates from 48 hpf zebrafish embryos injected with 2.5 ng control MO or 2.5 ng fmnl3 MO together without or with either 100 pg MO-resistant fmnl3 WT mRNA, 100 pg MO-resistant fmnl3 I111D mRNA (H) or 100 pg MO-resistant fmnl3 I684A mRNA (I) were subjected to Western blot analysis with anti-Fmnl3 and anti-β-actin antibodies. (J) Projection view of confocal z-stack images of the caudal regions of 33 hpf Tg(fli1:GFP) embryos injected with control MO or fmnl3 MO together with vehicle or MO-resistant mRNA encoding wild type Fmnl3 or Fmnl3 I684A are shown, as in Figure 1G. (K) The width of CVP as observed in J was quantified, as in Figure 1H (n≥5). Scale bars, 30 µm (A, D and F) and 100 µm (J). *p<0.05, **p<0.01. n.s., no significance.

Expression Data
Gene:
Fish:
Knockdown Reagent:
Anatomical Terms:
Stage: Prim-15

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagent:
Observed In:
Stage: Prim-15

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Cell, 32, Wakayama, Y., Fukuhara, S., Ando, K., Matsuda, M., Mochizuki, N., Cdc42 Mediates Bmp-Induced Sprouting Angiogenesis through Fmnl3-Driven Assembly of Endothelial Filopodia in Zebrafish, 109-22, Copyright (2015) with permission from Elsevier. Full text @ Dev. Cell
