Fig. 3

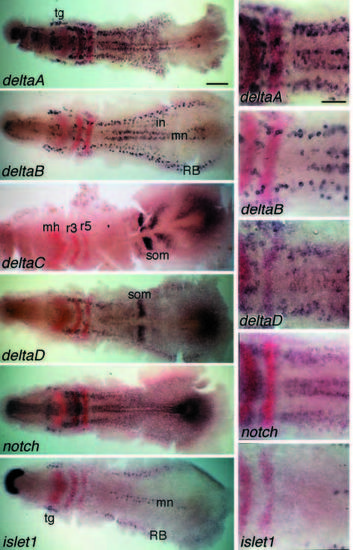

Expression of deltaA, B, C and D, notch and islet1 at the 5- somite stage (11.7 hpf), shown by in situ hybridisation with a purple blue (NBT/BCIP) detection system; embryos have also been double labelled with probes against paxb and Krox20, using a Fast-Red detection system, to provide landmarks. On the right, enlargements of the posterior hindbrain and anterior spinal-cord region are shown. Embryos are flat-mounted; anterior is to the left. tg, trigeminal ganglion; mh, midbrain/hindbrain boundary; r3, r5, rhombomeres 3 and 5; mn, motor neurons; in, interneurons; RB, Rohon-Beard (sensory) neurons; som, prospective somite. Scale bars: 200 μm (whole embryos), 100 μm (details).

Expression Data

Genes:	dla dlb dlc dld egr2b isl1a notch1a pax2a (all 8)
Fish:	WT
Anatomical Terms:	hindbrain neural plate neuron interneuron midbrain hindbrain boundary neural rod motor neuron presumptive rhombomere 3 presumptive rhombomere 5 Rohon-Beard neuron segmental plate somite tail bud trigeminal placode whole organism (all 12)
Stage:	5-9 somites
