FIGURE
Fig. S4
- ID
- ZDB-FIG-120525-40
- Publication
- Jia et al., 2012 - Protein Phosphatase 4 Cooperates with Smads to Promote BMP Signaling in Dorsoventral Patterning of Zebrafish Embryos
- Other Figures
- All Figure Page
- Back to All Figure Page
Fig. S4

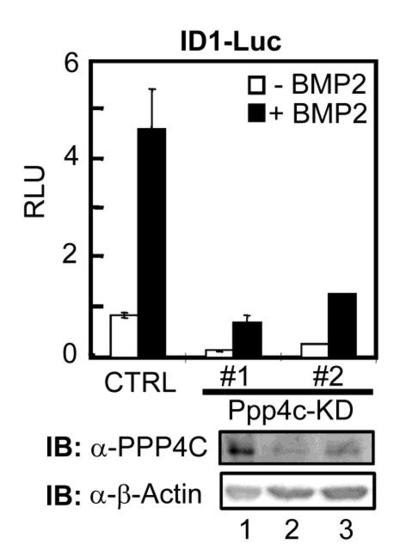

Depletion of Ppp4c inhibits BMP2-induced expression of ID1-Luc reporter in C2C12 cells, related to Figure 4. Two independent C2C12 stable clones, Ppp4c-KD #1 and #2, were selected following transfection with Ppp4c shRNA-14. The base level and BMP2-induced ID1-Luc reporter activity in these cells was dramatically decreased in cells depleted of Ppp4c. CTRL, pSRG vector. Ppp4c knockdown effect was demonstrated by Western blot in lower panel. |
Expression Data
Expression Detail
Antibody Labeling
Phenotype Data
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Developmental Cell, 22(5), Jia, S., Dai, F., Wu, D., Lin, X., Xing, C., Xue, Y., Wang, Y., Xiao, M., Wu, W., Feng, X.H., and Meng, A., Protein Phosphatase 4 Cooperates with Smads to Promote BMP Signaling in Dorsoventral Patterning of Zebrafish Embryos, 1065-1078, Copyright (2012) with permission from Elsevier. Full text @ Dev. Cell
