Fig. 8
- ID
- ZDB-FIG-091215-53
- Publication
- Alvarez et al., 2009 - Selective Inhibition of Retinal Angiogenesis by Targeting PI3 Kinase
- Other Figures
- All Figure Page
- Back to All Figure Page

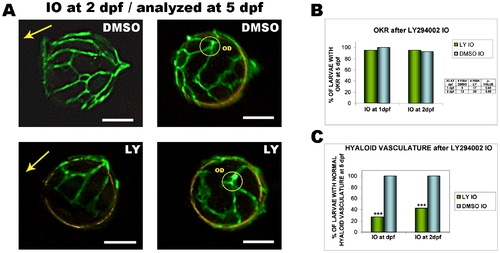

Intraocular injection of LY294002 inhibits angiogenesis but not visual function. A) The hyaloid vasculature of 5 dpf larvae intraocularly injected with 10 μM LY294002 at 2 dpf shows abnormal patterning and reduced numbers of primary branches compared with controls injected with 1% DMSO (left images are lateral views, and right images are dorsal views of lenses. OD: optic disc; scale bars: 50 μm) B) Graph of the percentage of 5 dpf larvae with optokinetic responses (OKR) following intraocular injection of LY294002 at 1 or 2 dpf. The Fisher test shows no statistically significant difference in visual function when LY294002 is injected intraocularly at 1 or 2 dpf (p values shown on table) C) Graph showing percentage of 5 dpf larvae with normal hyaloid vasculature after injection of LY294002 at 1 or 2 dpf. Intraocular LY294002 at 1 or 2 dpf, significantly inhibits hyaloid angiogenesis. Data graphed from 3 independent experiments; LY294002 at 1 dpf, n = 17; 1% DMSO at 1 dpf, n = 9; LY294002 at 2 dpf, n = 26; 1% DMSO at 2 dpf, n = 13 (***p<0.001, Chi-Square test). |
| Fish: | |
|---|---|
| Condition: | |
| Observed In: | |
| Stage: | Day 5 |
