Fig. 6

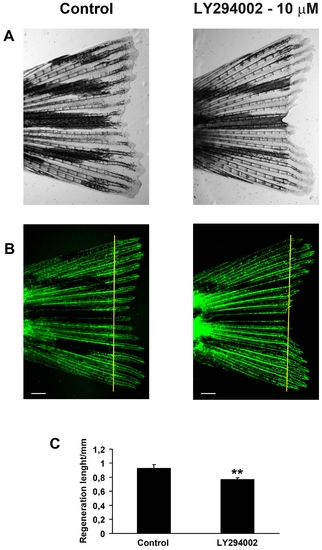

LY294002 attenuates Regenerative Angiogenesis in Adult Zebrafish.

The caudal fins of adult Tg(fli1:EGFP) zebrafish were amputated and left to regenerate in either tank water or tank water supplemented with 10 μM LY294002. Bight field micrographs (A) or fluorescent micrographs (B) of representative fins at 9 days post-amputation are shown. The maximal, average blood vessel length in the regenerated tissue was quantified at the third fin ray in either fin lobe and the results are depicted in (C). LY294002 significantly inhibits regenerative angiogenesis in the tail fin (** p<0.01, t-test). Yellow lines in B indicate the amputation plane. n = 8 fin rays in 4 fish. Scale bars = 500 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	y1Tg
Condition:	amputation: caudal fin, chemical treatment: LY294002
Observed In:	angiogenesis involved in wound healing
Stage:	Adult
