ZFIN Figure: Roussigné et al., 2009, Fig. 1

ZFIN ID: ZDB-FIG-090501-35

ZFIN ID: ZDB-FIG-090501-35

Roussigné et al., 2009 - Nodal signalling imposes left-right asymmetry upon neurogenesis in the habenular nuclei. Development (Cambridge, England) 136(9):1549-1557 Full text @ Development

ADDITIONAL FIGURES

EXPRESSION / LABELING:

Genes:	cxcr4b EGFP kctd12.1 pou4f1
Fish:	WT knu3Tg
Anatomical Terms:	epithalamus habenula
Stage Range:	Prim-25 to Protruding-mouth

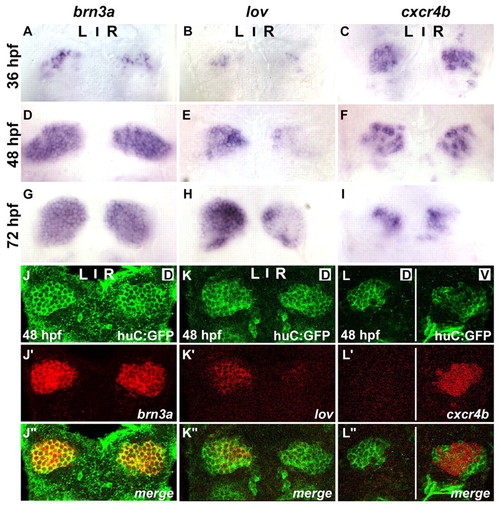

Fig. 1 cxcr4b is expressed in the habenulae. (A-I) Expression of brn3a (A,D,G), lov (B,E,H) and cxcr4b (C,F,I) in habenulae of wild-type zebrafish embryos at 36 (A-C), 48 (D-F) and 72 (G-I) hpf. (J-L″) Single confocal images of 48 hpf Tg(huC:gfp) embryos showing immunolabelled GFP protein (J-L) and the localisation of mRNA encoding brn3a (J′), lov (K′) or cxcr4b (L′). (J″-L″) Merged images. Dorsal views of embryos with anterior at the top. Single confocal sections correspond to dorsal (D) or ventral (V) z-sections through the habenular nuclei.

Gene Expression Details

Gene	Fish	Conditions	Stage	Anatomy	Assay
cxcr4b	WT	standard conditions	Prim-25	epithalamus	ISH
			Long-pec	habenula	ISH
			Protruding-mouth	habenula	ISH
	knu3Tg	standard conditions	Long-pec	habenula	ISH
EGFP	knu3Tg	standard conditions	Long-pec	habenula	IHC
kctd12.1	WT	standard conditions	Prim-25	epithalamus	ISH
			Long-pec	habenula	ISH
			Protruding-mouth	habenula	ISH
	knu3Tg	standard conditions	Long-pec	habenula	ISH
pou4f1	WT	standard conditions	Prim-25	epithalamus	ISH
			Long-pec	habenula	ISH
			Protruding-mouth	habenula	ISH
	knu3Tg	standard conditions	Long-pec	habenula	ISH
