Fig. 4

ID
ZDB-IMAGE-210610-11
Genes
Antibodies
Source
Figures for Yang et al., 2021
Figure Caption

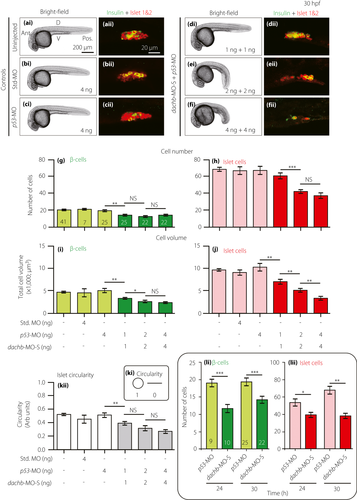

Fig. 4 Splice-blocking dachb-morpholino (dachb-MO-S) knockdown inhibits the development of the pancreatic islet- and β-cells. Embryos were (a) uninjected (control) or injected at the one-cell stage with (b) 4 ng standard MO (Std. MO; control), (c) 4 ng p53-MO (control) or (d,e,f) a combination of p53-MO and dachb-MO-S at (d) 1 ng + 1ng, (e) 2 ng + 2 ng or (f) 4 ng + 4 ng. (ai-fi) Bright-field images were acquired at 30 h post-fertilization (hpf), after which the embryos were whole-mount double-immunolabeled with antibodies to insulin (green) and islet 1 and 2 (red) to show the localization of the β-cells and islet cells in the endocrine pancreas, respectively. (aii–fii) These are all single optical sections taken through the middle of pancreatic islet. (g–h) The number of (g) β-cells and (h) islet cells, and (i,j) the volume of (i) β-cells and (j) islet cells. (k) The circularity of the pancreatic islet. (l) Bar charts showing the numbers of (li) β-cells and (lii) islet cells in embryos at 24 hpf and 30 hpf after they were injected at the one-cell stage with either p53-MO (controls) or p53-MO and dachb-MO-S (at the amounts described above). The data are presented as the mean ± standard error of the mean of n = 7 to 41 embryos, such that the number is shown in the respective bars in panel (g). The asterisks indicate significant differences at P < 0.05*, P < 0.01** or P < 0.001*** using the Mann–Whitney U-test. Ant., anterior; D, dorsal; NS, not significant; Pos. posterior; V, ventral.

Figure Data
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ J Diabetes Investig
