ZFIN Image: Bhakta et al., 2018, Fig. 4


Figure Caption

Fig. 4

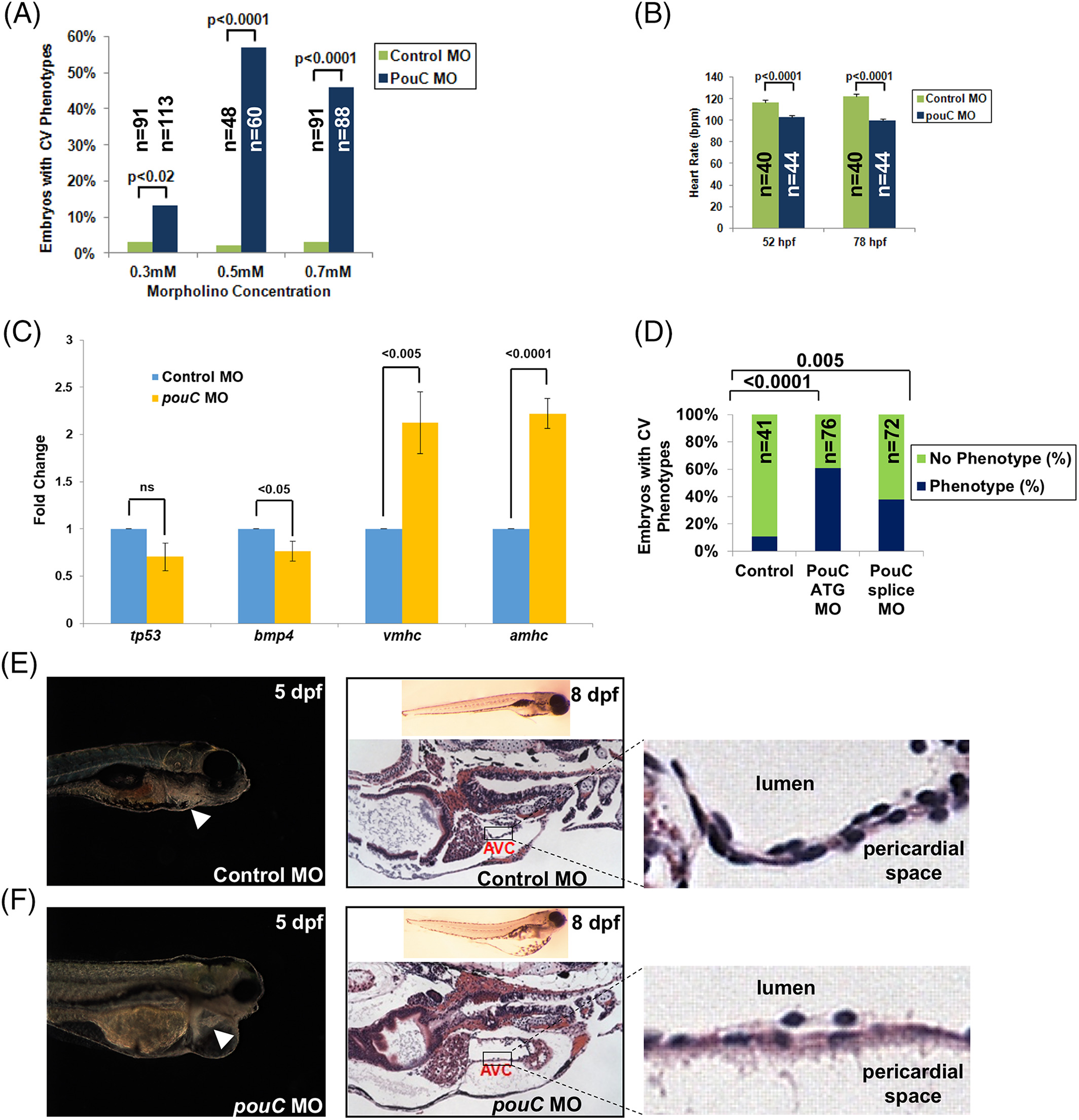

pouC knockdown impairs cardiac morphogenesis. A: Zebrafish embryos were injected with the indicated concentration of control or pouC MO and scored for a cardiovascular phenotype, which included pericardial edema, sluggish heart rate, abnormal looping, or impaired contraction. B: Heart rate was measured in control and pouC morphant zebrafish at 52 and 78 hpf. C: Zebrafish embryos were injected with control or pouC ATG MO. Total embryo RNA was isolated, and cDNA was prepared for qRT‐PCR analysis using the indicated primer sets. D: Zebrafish embryos were injected with control, pouC ATG, or pouC splicing MO. Cardiovascular phenotypes were assessed at 48 hpf. E: The left image shows a control zebrafish at 5 dpf with the heart indicated by a white arrowhead. The right image demonstrates a control zebrafish at 8 dpf in whole‐mount (top) and a section through the AVC with a zoomed view shown at right. F: Same as in (E) for a pouC morphant zebrafish. Note the decreased cellularity of the AVC region in pouC morphant embryos.

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
