FIGURE 1

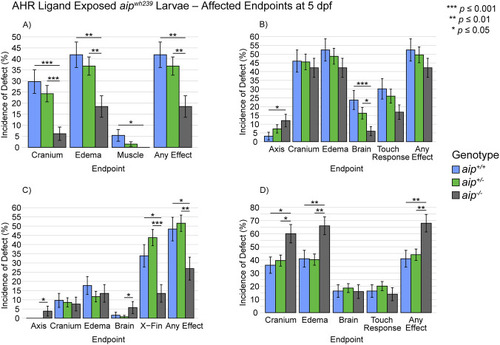

Morphological endpoints with significantly increased incidence in five dpf aip^wh239 larvae following exposure to Ahr ligands near their EC₅₀ concentrations (A) 0.2 µM PCB126 (B) 11 µM 5-NAN (C) 40 μM BkF, and (D) 0.75 µM leflunomide. Affected endpoints are displayed on the x-axis, while the percent incidence of the endpoint is displayed on the y-axis. Significant differences between each genotype are denoted by an asterisk, * (p-value ≤0.05, Kruskal–Wallis test followed by Dunn’s post hoc tests with Holm correction, error bars = standard error). Each experiment demonstrated that aip^wh239−/− larvae had differential susceptibility to Ahr ligands, with reduced sensitivity to all exposures except leflunomide, for which sensitivity was greater.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	TU aip^wh239/wh239
Conditions:	chemical treatment by environment: 5-Nitroacenaphthene chemical treatment by environment: Benzo[k]fluoranthene chemical treatment by environment: leflunomide chemical treatment by environment: 3,3',4,4',5-pentachlorobiphenyl
Observed In:	axis brain cranium fin muscle pericardium thigmotaxis
Stage:	Day 5
