FIGURE

FIGURE 2

ID

ZDB-FIG-260720-9

Publication

Perone et al., 2026 - Aip mutation leads to significant alterations in gene expression, altered sensitivity to Ahr ligands, and early lethality in zebrafish

Other Figures

All Figure Page

Back to All Figure Page

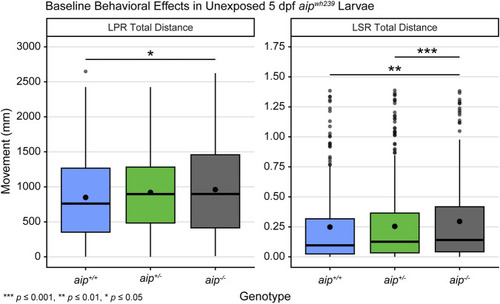

FIGURE 2

Behavioral analysis of DMSO-exposed five dpf larvae from the aip^wh239 line. Data is from control larvae for each of the four EC₅₀ Ahr ligand exposures. A linear mixed model was fit, including “dataset” as a variable to account for experiment-to-experiment variation. Genotype is presented on the x-axis, and larval movement in mm is presented on the y-axis for LPR and LSR total distance. Boxplots show the median (horizontal line), mean (circle), interquartile range (box), and 1.5x the interquartile range (whiskers). Significant differences between each genotype are denoted by an asterisk, * (p-value ≤0.05, type III ANOVA followed by pairwise t-tests of model-based estimated marginal means adjusted using Benjamini–Hochberg FDR correction). Unexposed aip^wh239−/− larvae had significantly increased movement in the LPR and LSR assays when compared to aip^wh239+/+ larvae.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	aip^wh239/wh239
Conditions:	acoustic radiation lighting conditions
Observed In:	response to light stimulus startle response
Stage:	Day 5

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front Toxicol
