FIGURE

Fig. 3

ID

ZDB-FIG-250922-34

Publication

Bagwe Parab et al., 2025 - Development of Zebrafish model for Iron Induced Neuroinflammation

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

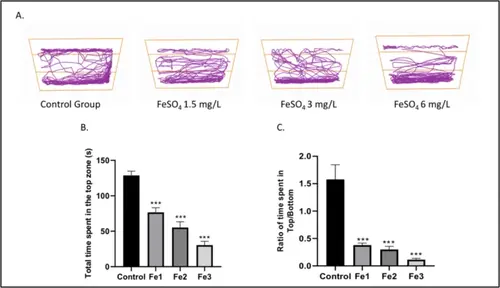

Ferrous Sulphate (1.5, 3, and 6 mg/L) impaired the locomotion and increased the anxiety levels in the zebrafish when subjected to novel tank test (A) Illustration of representative locomotion tracking pattern (Novel tank test) of the Control group and FeSO4 (1.5, 3, and 6 mg/L) treated groups. (B) Graphical representation of the total time spent by the zebrafish in the top zone of the novel tank. (C) Graphical representation of the Ratio of time spent in the Top/Bottom zone in the different groups. Data are represented as means ± S.E.M. (n = 10). For Bonferroni’s post hoc analyses: (B) Control vs. Fe1(1.5 mg/L): *** p < 0.0001, Control vs. Fe2(3 mg/L): *** p < 0.0001, Control vs. Fe3(6 mg/L): *** p < 0.0001. (C) Control vs. Fe1(1.5 mg/L): *** p < 0.0001, Control vs. Fe2(3 mg/L): *** p < 0.0001, Control vs. Fe3(6 mg/L): *** p < 0.0001

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	WT
Condition:	chemical treatment by environment: iron(2+) sulfate (anhydrous)
Observed In:	response to environmental enrichment
Stage:	Adult

Phenotype Detail
