Fig. 3

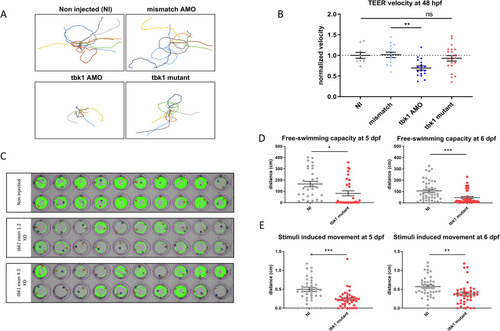

Motor behavior of tbk1 mutant zebrafish larvae.

A Traces representative of the touch-evoked escape response (TEER) in 48 hpf tbk1 mutant, tbk1 or mismatch AMO or NI zebrafish larvae. B Quantitative analysis of the TEER velocity of 48 hpf tbk1 mutant, mismatch or tbk1 AMO or NI zebrafish larvae (one-way ANOVA with Tukey’s multiple comparisons test). *p < 0.05, **p < 0.01). C Representative traces suggestive of motor behavior and swimming trajectories of 5 dpf zebrafish larvae, recorded with a semiautomated video tracking system (Viewpoint Zebrabox). D Quantitative analysis of free-swimming (top panel) or stimuli-induced motor behavior (bottom) in 5 (left) or 6 dpf (right) tbk1 mutant or NI control zebrafish larvae. (Unpaired t test for comparative analysis. *p < 0.05).

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data
Fish:
Knockdown Reagents:
Observed In:
Stage Range: Long-pec to Day 6

Phenotype Detail
