Fig. 2

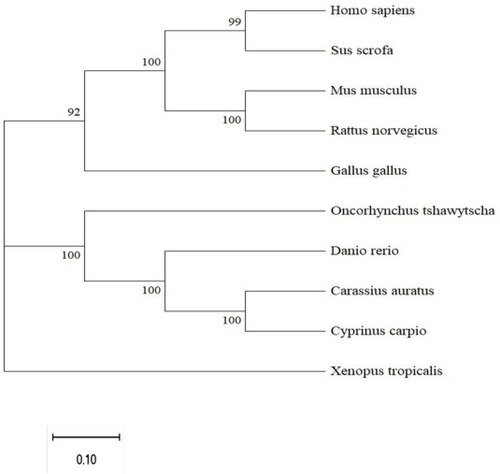

Phylogenetic analysis of FTO amino acid sequences. A phylogenetic tree based on the amino acid sequences of FTO was constructed by MEGA 11 program using the Neighbor-Joining method. The number at each node indicates the bootstrap value obtained for 1000 replicates. The scale bar shows genetic distance. GenBank accession numbers: Homo sapiens FTO (NP_001073901.1), Mus musculus FTO (NP_036066), Rattus norvegicus FTO (XP_038953492.1), Sus scrofa FTO(NP_001106162.1) Xenopus tropicalis FTO(NP_001017273.1), Gallus gallus FTO(NP_001172076.1), Danio rerio FTO (XP_001345910.4), Carassius auratus FTO (XP_026123363.1) Cyprinus carpio FTO(XP_042583804.1), Oncorhynchus tshawytscha FTO(XP_042186975.1).
