ZFIN Image: Karimzadeh et al., 2024, Fig. 2


Figure Caption

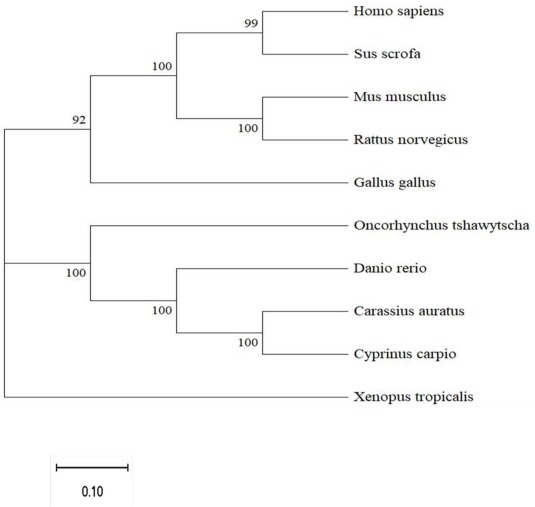

Fig. 2 Phylogenetic analysis of FTO amino acid sequences. A phylogenetic tree based on the amino acid sequences of FTO was constructed by MEGA 11 program using the Neighbor-Joining method. The number at each node indicates the bootstrap value obtained for 1000 replicates. The scale bar shows genetic distance. GenBank accession numbers: Homo sapiens FTO (NP_001073901.1), Mus musculus FTO (NP_036066), Rattus norvegicus FTO (XP_038953492.1), Sus scrofa FTO(NP_001106162.1) Xenopus tropicalis FTO(NP_001017273.1), Gallus gallus FTO(NP_001172076.1), Danio rerio FTO (XP_001345910.4), Carassius auratus FTO (XP_026123363.1) Cyprinus carpio FTO(XP_042583804.1), Oncorhynchus tshawytscha FTO(XP_042186975.1).

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Gen. Comp. Endocrinol.
