Fig. 4
- ID
- ZDB-FIG-250110-16
- Publication
- Smaili et al., 2024 - R391 human dominant mutation does not affect TubB4b localization and sensory hair cells structure in zebrafish inner ear and lateral line
- Other Figures
- All Figure Page
- Back to All Figure Page

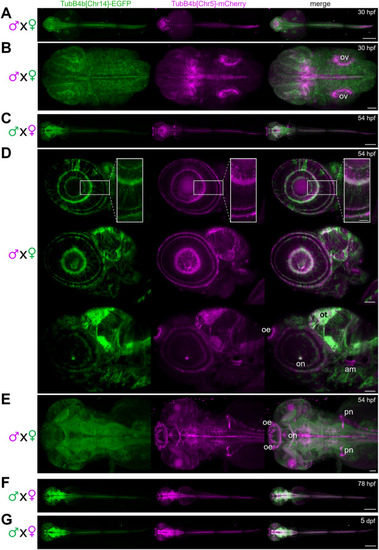

Expression of TubB4b[Chr14] and TubB4b[Chr5] in developing zebrafish larva. A,B,D,E: double transgenic larva obtained from females Tg(tubB4b[Chr14]:TubB4b[Chr14]-EGFP)+/0 crossed with males Tg(tubB4b[Chr5]:TubB4b[Chr5]-mCherry)+/0 and observed at 30 hpf (A,B) or 54 hpf (D,E). C,F,G: double transgenic larva obtained from females Tg(tubB4b[Chr5]:TubB4b[Chr5]-mCherry)+/0 crossed with males Tg(tubB4b[Chr14]:TubB4b[Chr14]-EGFP)+/0 and observed at 54 hpf (C), 78 hpf (F) or 5 dpf (G). Zeiss Lighsheet imaging of whole larva (A,C,F,G; scale bar = 300 μm) or head region (B,D,E; scale bar = 50 μm; scale bar = 20 μm for inset in D). Dorsal view (A,B,C,E,F,G) or lateral view (D). Projection of stacks in A,B,C,E,F,G; single digital sections in D, from lateral (top panel) to medial (bottom panel). ov: otic vesicle; oe: olfactory epithelium; ot: optic tectum; on: optic nerve; am: anterior macula; pn: pronephros. |
