Fig. 3

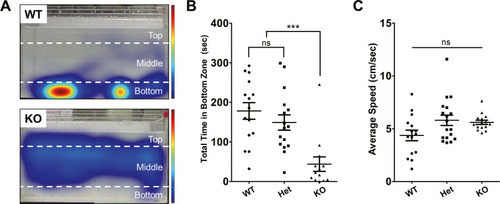

Decreased anxiety-like behavior in znf536 KO zebrafish.

A Representative heatmaps from the novel tank assay. The red color indicates increased dwell time and blue indicates decreased. B Quantified data for total time spent in the bottom zone. C Average speed of locomotion. n = 15 for WT, n = 16 for Het, and n = 13 for KO. Data was presented as mean ± standard error of the mean (S.E.M.). Statistical significance was determined by the Kruskal–Wallis tests with post-hoc Dunn’s multiple comparisons tests. ns, no significance; p*** < 0.001.
